Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10777870 Assembly, Plenum Special Order $ 164.39

2 W10777874 Assembly, Scroll Special Order $ 55.82

3 4026F008-51 Ring, Inlet Special Order $ 7.43

4 WPW10247586 Motor, Blower   (Replaces: W10247586) Special Order $ 262.55

5 WPY707985 Wheel, Blower   (Replaces: 7114P005-60) In-Stock Immediately $ 145.55

6 WPY707702 Nut, Lock   (Replaces: 7103P162-60) In-Stock Immediately $ 6.26

7 7109P086-60 Washer Appelez-nous -
8 W10905834 Filter, Grease   (Replaces: W10815866) In-Stock Immediately $ 25.83

9 8312P151-60 Guard, Blower Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

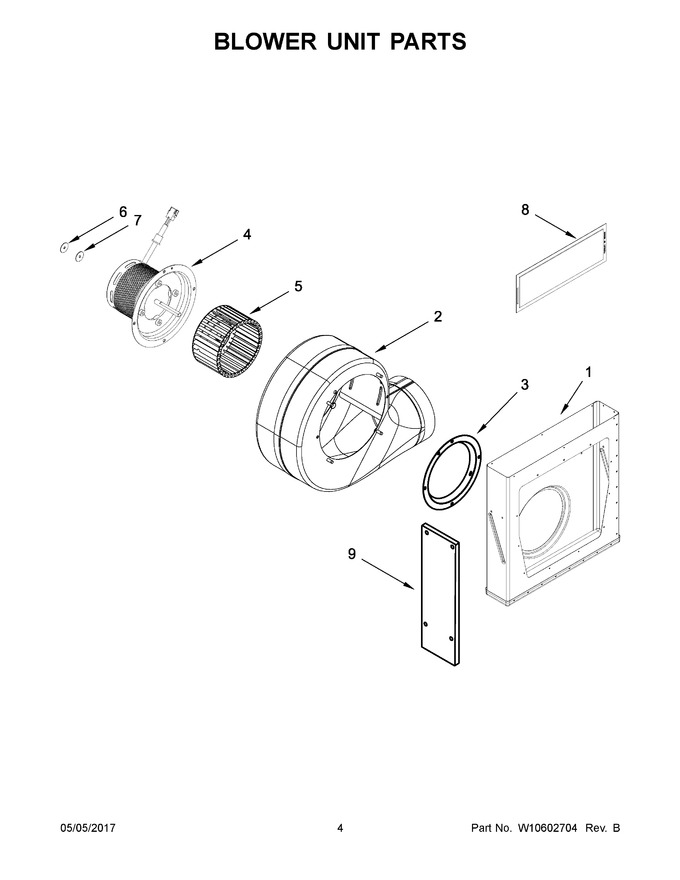

Diagram for JGD3430BS00
