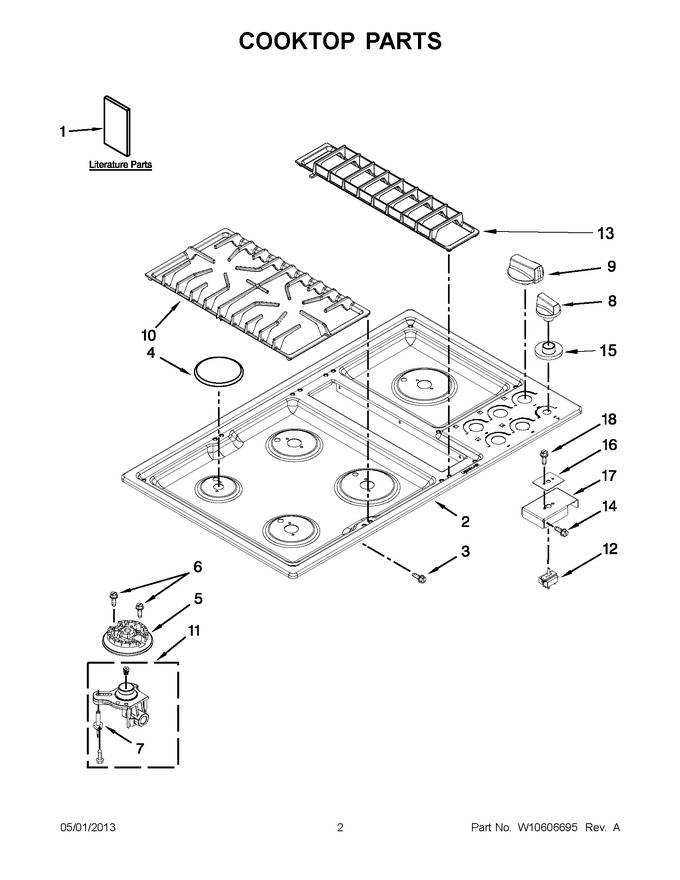

01 - Cooktop Parts


02 - Blower Unit Parts


03 - Burner Box Assembly


04 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10574732		Instructions, Installation		Appelez-nous	-
1	W10222824		Tech Sheet (english)		Appelez-nous	-
1	W10222823		Tech Sheet (french)		Appelez-nous	-
1	W10555863		Guide, Use & Care		Appelez-nous	-
1	W10240007		Instructions Lp Conversion		Appelez-nous	-
1	8106P068-60		Card, Flow Tester				$ 6.65
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10555856		Top, Main (stainless)		Appelez-nous	-
2	W10555857		Top, Main (black)		Appelez-nous	-
2	W10555858		Top, Main (white)		Appelez-nous	-
3	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.47
4	7504P295-60		Cap, Burner Wetstone (left Front & Center Rear)				$ 82.77
4	7504P296-60		Cap, Burner Wetstone (right Rear & Center Front)				$ 82.75
4	7504P294-60		Cap, Burner Wetstone (left Rear)				$ 62.87
4	WP7504P300-60		Cap, Burner (black (right Rear & Center Front))   (Replaces: 7504P300-60)				$ 106.62
4	WP7504P298-60		Cap, Burner (black (left Rear))   (Replaces: 7504P298-60)				$ 56.92
4	WP7504P299-60		Cap, Burner (black (left Front & Center Rear))   (Replaces: 7504P299-60)				$ 83.03
5	74007734		Assembly, Burner (5k) (left Rear)   (Replaces: 7505P304-60)				$ 107.79
5	74007735		Assembly, Burner (12.5k) (left Front & Center Rear)   (Replaces: 7505P305-60)			Immediately	$ 102.76
5	74007736		Assembly, Burner (15k) (right Rear & Center Front)   (Replaces: 7505P306-60)			Immediately	$ 105.36
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
7	WP74009336		Ignitor, Cooktop   (Replaces: 7432P121-60)			Immediately	$ 24.30
8	W10549673		Knob, Fan (stainless)				$ 36.40
8	W10551840		Knob, Fan (black)		Appelez-nous	-
8	W10551841		Knob, Fan (white)		Appelez-nous	-
9	W10559476		Knob, Control (black)				$ 85.51
9	WPW10559475		Knob, Control (stainless)   (Replaces: W10559475)				$ 51.04
9	W10559477		Knob, Control (white)		Appelez-nous	-
10	WPW10204545		Grate (black(left))   (Replaces: W10204545)				$ 185.27
10	W10203092		Grate (white(center))		Appelez-nous	-
10	W10203091		Grate (white(left))		Appelez-nous	-
10	WPW10204548		Grate (black(right))   (Replaces: W10204548)				$ 170.03
10	W10204546		Grate (black(center))				$ 86.29
10	W10203094		Grate (white(right))		Appelez-nous	-
11	WP7527P002-60		Holder, Orifice (9.2k) (left Rear)   (Replaces: 7527P002-60)				$ 72.90
11	74009553		Holder, Orifice (5k) (center Front)   (Replaces: 7527P042-60)				$ 75.27
11	WP7527P031-60		Holder, Orifice (17k) (left Front)   (Replaces: 7527P031-60)				$ 99.27
11	WP7527P004-60		Holder, Orifice (right Rear)   (Replaces: 7527P004-60)				$ 72.90
11	WP7527P003-60		Holder, Orifice (12.5k) (center Rear)   (Replaces: 7527P003-60)				$ 69.37
12	WP4456836		Switch, Blower   (Replaces: 4456836)			Immediately	$ 158.17
13	W10203093		Grille, Air (white)		Appelez-nous	-
13	WPW10204547		Grille, Air (black)   (Replaces: W10204547)				$ 157.98
14	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.47
15	W11544657		Bezel (black)   (Replaces: W10559486)				$ 39.38
15	WPW10559494		Bezel (stainless)   (Replaces: W10559494)			Immediately	$ 68.76
15	W10559485		Bezel (white)		Appelez-nous	-
16	WP71002569		Gasket, Infinite Switch   (Replaces: 7201P077-60)			Immediately	$ 9.06
17	W10235926		Bracket, Switch Mount		Appelez-nous	-
18	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 6.26
