01 - Cooktop Parts
02 - Blower Unit Parts

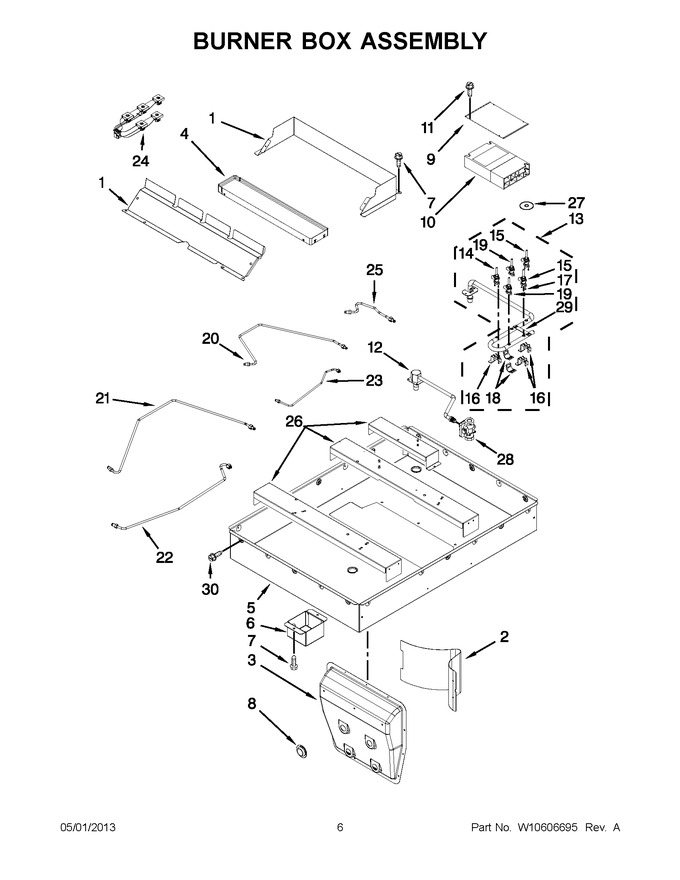

03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10269705 | Bracket, Support (right Hand) |
|
- | |||||
| 1 | W10269712 | Bracket, Support (left Hand) |
|
- | |||||
| 2 | W10184137 | Rail, Plenum Support |
|
- | |||||
| 3 | W10184125 | Bypass, Plenum Side |
|
$ 181.44 | |||||
| 4 | W10235990 | Tray, Spill |
|
$ 73.51 | |||||
| 5 | W10498374 | Box, Burner |
|
- | |||||
| 6 | W10258697 | Cover, Blower Motor Harness |
|
Immediately | $ 81.29 | ||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 8 | 7718P023-60 | Plug, Hole |
|
$ 8.98 | |||||
| 9 | W10253448 | Cover, Spark |
|
- | |||||
| 10 | WPW10475150 | Module, Spark (Replaces: W10475150) |
|
Immediately | $ 219.54 | ||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 12 | W10361756 | Fitting,gas Supply |
|
Immediately | $ 158.50 | ||||
| 13 | W10467732 | Assembly, Manifold Pipe (Replaces: W10184143) |
|
$ 271.27 | |||||
| 14 | W10441654 | Valve, Gas Top (5k) (Replaces: W10237981) |
|
$ 221.94 | |||||
| 15 | W11699889 | Valve, Gas Top (17/15k) (Replaces: W10237983) |
|
$ 60.40 | |||||
| 16 | W10221532 | Bracket, Valve Mount |
|
- | |||||
| 17 | W11666001 | Screw (Replaces: W10246216) |
|
$ 12.24 | |||||
| 18 | W10246217 | Bracket, Saddle Valve |
|
- | |||||
| 19 | W10831822 | Valve, Gas Top (9.2/12.5k) (Replaces: W10259053) |
|
$ 245.39 | |||||
| 20 | W10188368 | Tubing,gas (center Rear) |
|
- | |||||
| 21 | W10188366 | Tubing,gas (left Rear) |
|
- | |||||
| 22 | W10188365 | Tubing,gas (left Front) |
|
- | |||||
| 23 | W10188367 | Tubing,gas (center Front) |
|
- | |||||
| 24 | WPW10239017 | Switch, Ignitor (Replaces: W10239017) |
|
Immediately | $ 203.60 | ||||
| 25 | W10188369 | Tubing, Gas (right Rear) |
|
- | |||||
| 26 | W10205612 | Bracket, Orifice (left) |
|
- | |||||
| 26 | W10205613 | Bracket, Orifice (center) |
|
- | |||||
| 26 | W10205615 | Bracket, Orifice (right) |
|
- | |||||
| 27 | WP3188425 | Seal, Shaft (Replaces: 3191387) |
|
$ 82.61 | |||||
| 28 | W11087445 | Regulator,pressure (Replaces: W10132345) |
|
Immediately | $ 177.34 | ||||
| 29 | W10185534 | Bracket, Spacing |
|
- | |||||
| 30 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 |
