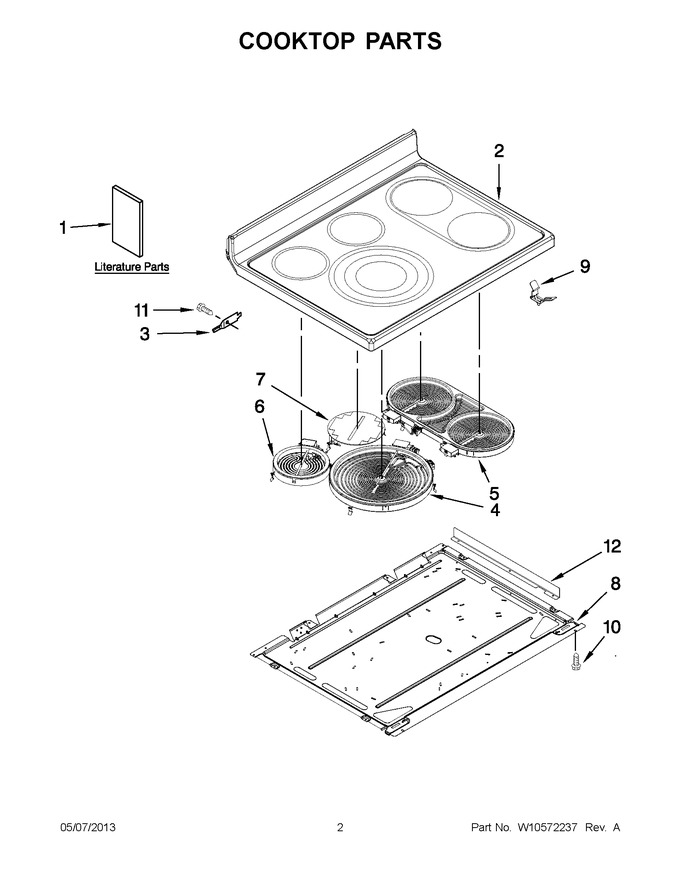

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10392924 | Use And Care Guide |
|
- | |||||
| 1 | W10522408 | Tech Sheet, English |
|
- | |||||
| 1 | W10522409 | Tech Sheet, French |
|
- | |||||
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1 | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10380672 | Cooktop (white) |
|
- | |||||
| 2 | W10380673 | Cooktop (black) |
|
- | |||||
| 3 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 4 | WPW10297138 | Element, 3000 Watt (left Front) (Replaces: W10297138) |
|
$ 334.94 | |||||
| 5 | WPW10248259 | Element, Bridge (right Front & Right Rear) (Replaces: W10248259) |
|
$ 320.70 | |||||
| 6 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 7 | W11047668 | Element, Warm Zone (center) (Replaces: W10388247) |
|
$ 113.96 | |||||
| 8 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 122.99 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 11 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 12 | W10348913 | Bracket, L-bridge |
|
- |
