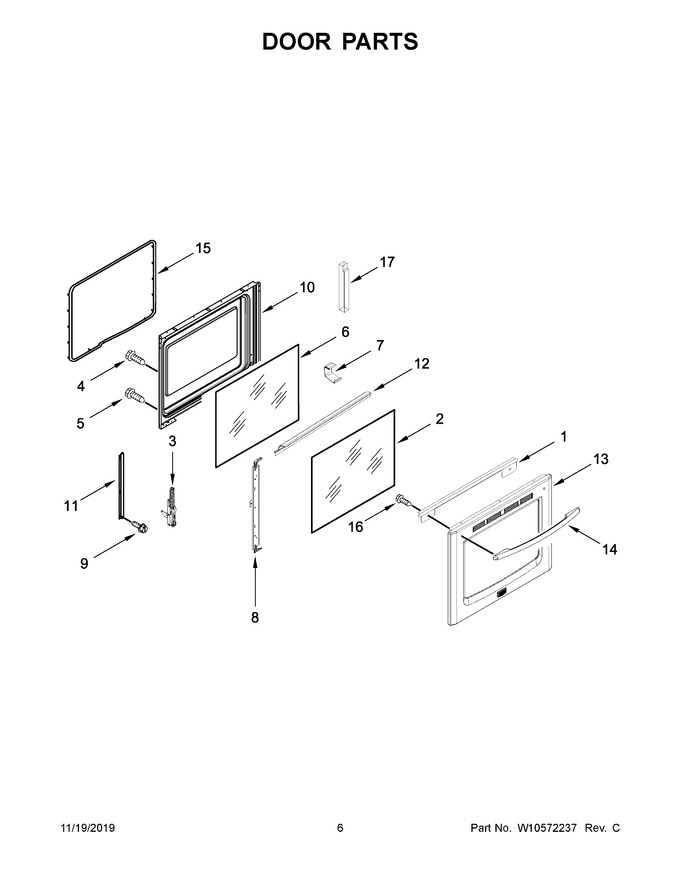

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10330075 | Trim, Vent (white) |
|
$ 71.78 | |||||
| 1 | W10339814 | Trim, Vent (black) |
|
$ 139.33 | |||||
| 2 | W10615599 | Glass, Outer |
|
$ 118.66 | |||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 227.18 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 114.64 | |||||
| 9 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 10 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 284.15 | ||||
| 11 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 12 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 203.18 | ||||
| 13 | W10325666 | Skin, Door (black) |
|
- | |||||
| 13 | W10325665 | Skin, Door (white) |
|
- | |||||
| 13 | WPW10655838 | Skin, Door (stainless) (Replaces: W10325668) |
|
Immediately | $ 319.98 | ||||
| 14 | WPW10161708 | Handle, Door (stainless) (Replaces: W10161708) |
|
$ 319.73 | |||||
| 14 | WPW10171747 | Handle, Door (white) (Replaces: W10171747) |
|
$ 253.81 | |||||
| 14 | WPW10171748 | Handle, Door (black) (Replaces: W10171748) |
|
$ 249.45 | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 16 | WPW10241367 | Screw (black & White Models) (Replaces: W10241367) |
|
$ 6.27 | |||||
| 17 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 22.73 | |||||
| 13A | W10325666 | Skin, Door (black) |
|
- | |||||
| 13B | WPW10655838 | Skin, Door (stainless) (Replaces: W10325668) |
|
Immediately | $ 319.98 | ||||
| 14A | WPW10171748 | Handle, Door (black) (Replaces: W10171748) |
|
$ 249.45 | |||||
| 14B | WPW10161708 | Handle, Door (stainless) (Replaces: W10161708) |
|
$ 319.73 | |||||
| 16A | WP8533988 | Screw (stainless Models) (Replaces: W11091878) |
|
Immediately | $ 7.16 | ||||
| 1A | W10339814 | Trim, Vent (black) |
|
$ 139.33 |
