SELECT A DIAGRAM

01 - Cabinet Top And Control Hood Rear Panel

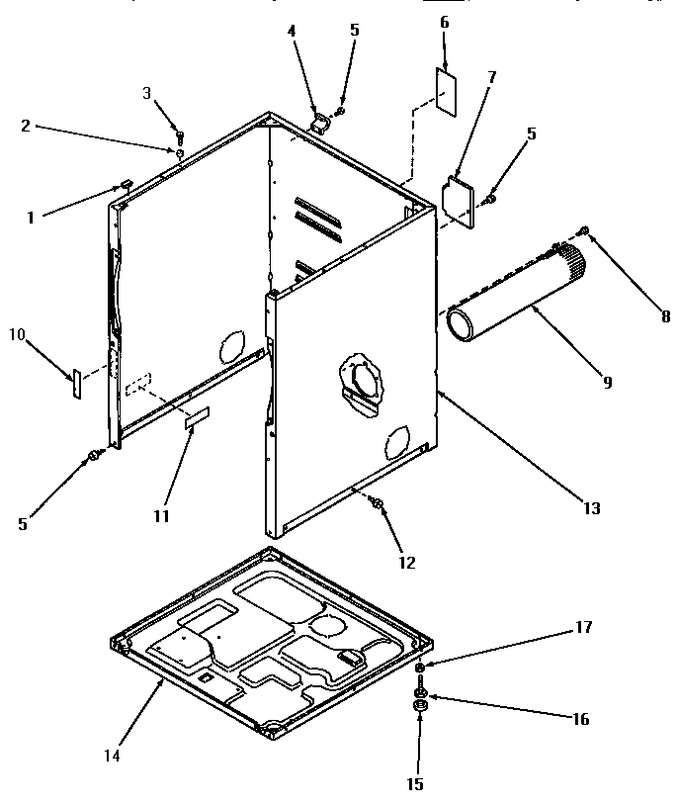

02 - Cabinet, Exhaust Duct And Base


03 - Cylinder Roller


04 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


05 - Gas Valve And Igniter


06 - Graphics Panel, Ctrl Hood And Ctrls


07 - Heater Box


08 - Loading Door, Front Panel And Seals


09 - Motor, Exhaust Fan And Belt


10 - Power Cord And Terminals


11 - Rear Blkhd, Felt Seal & Cylinder Roller


12 - Terminal Block


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
2	56079		Locater, Panel			Immediately	$ 6.95
3	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
4	60826		Hinge, Top		Appelez-nous	-
5	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
6	56427		Sticker		Appelez-nous	-
7	60821		Acess Cover				$ 1.98
8	56392		Screw,8-18 X 3/8 Tappi		Appelez-nous	-
9	56118		Assy, Exhaust Duct		Appelez-nous	-
10	24903		Sticker,disconnect Pow		Appelez-nous	-
11	61294		Sticker		Appelez-nous	-
12	58624		Screw		Appelez-nous	-
13	60813HP		Assy,dryer Cabinet		Appelez-nous	-
13	60813WP		Xxxassy,dryer Cabinet		Appelez-nous	-
13	60813LP		Xxxassy,dryer Cabinet		Appelez-nous	-
14	60811		Assy,base-complete		Appelez-nous	-
15	70282		Foot,rubber		Appelez-nous	-
16	WP233550		Foot,adjustable   (Replaces: Y52696)				$ 7.16
17	WP62739		Nut,hex 3/8-16   (Replaces: 20274)				$ 6.85

    View Diagram in Separate Window       Print Part List
