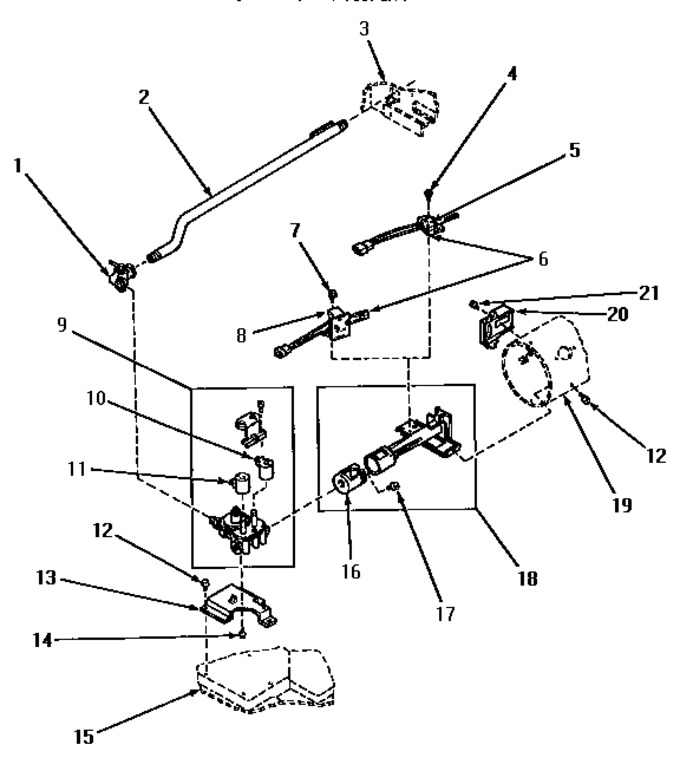

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y56229		Valve,elbow Shut-off		Appelez-nous	-
2	58911		Assy,lead-in Pipe		Appelez-nous	-
3	Y00000000		See Note Cabinet -- (see Page 10, Key 13)		Appelez-nous	-
4	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
5	Y00000000		See Note Carborundum Igniter And Bracket		Appelez-nous	-
6	WP37001308		Igniter & Bracket Assembly   (Replaces: 60868)			Immediately	$ 67.52
7	Sub. To D510151W		Screw,no.6-20x.44/.41 In   (Replaces: 56693)		Appelez-nous	-
8	Y00000000		See Note Norton Igniter And Bracket		Appelez-nous	-
9	58804		Assy,valve-gas-single-		Appelez-nous	-
10	279834		Coil, Secondary   (Replaces: 58804B)			Immediately	$ 29.57
11	58804A		Booster & Holding Coil			Immediately	$ 28.02
12	WP27001200		Hex Head Screw   (Replaces: 56264)				$ 6.91
13	58912		Mounting Bracket		Appelez-nous	-
14	WP489128		Screw, 8t-32x3/8 He   (Replaces: 56124)				$ 9.79
15	Y00000000		See Note Base -- (see Page 10, Key 14)		Appelez-nous	-
16	53007		Shutter,air		Appelez-nous	-
17	51356		Screw,6-32 X 5/16 Rd H		Appelez-nous	-
18	Y56234		Assembly, Burner		Appelez-nous	-
19	Y00000000		See Note Burner Housing -- (see Page 7)		Appelez-nous	-
20	WP338906		Sensor, Flame   (Replaces: Y56231)			Immediately	$ 46.72
NI	402P3		Kit,conversion-ng				$ 56.93
NI	60516		Sticker,valve Converted		Appelez-nous	-
NI	60520		Sticker,lp Gas		Appelez-nous	-
NI	COMM PART		Screw,vent   (Replaces: 58768)		Appelez-nous	-
NI	58719		Orifice,screw		Appelez-nous	-
NI	60521		Sticker,ng Or Mixed Gas		Appelez-nous	-
NI	60514		Plate,conversion		Appelez-nous	-
NI	60517		Valve Converted To Lp Gas Stic		Appelez-nous	-
NI	60515		Plate,conversion		Appelez-nous	-
NI	58755		Orifice,lp		Appelez-nous	-
NI	COMM PART		Plug,block Open   (Replaces: 58754)		Appelez-nous	-
NI	401P3		Kit, Conversion-lp			Immediately	$ 51.40

    View Diagram in Separate Window       Print Part List
