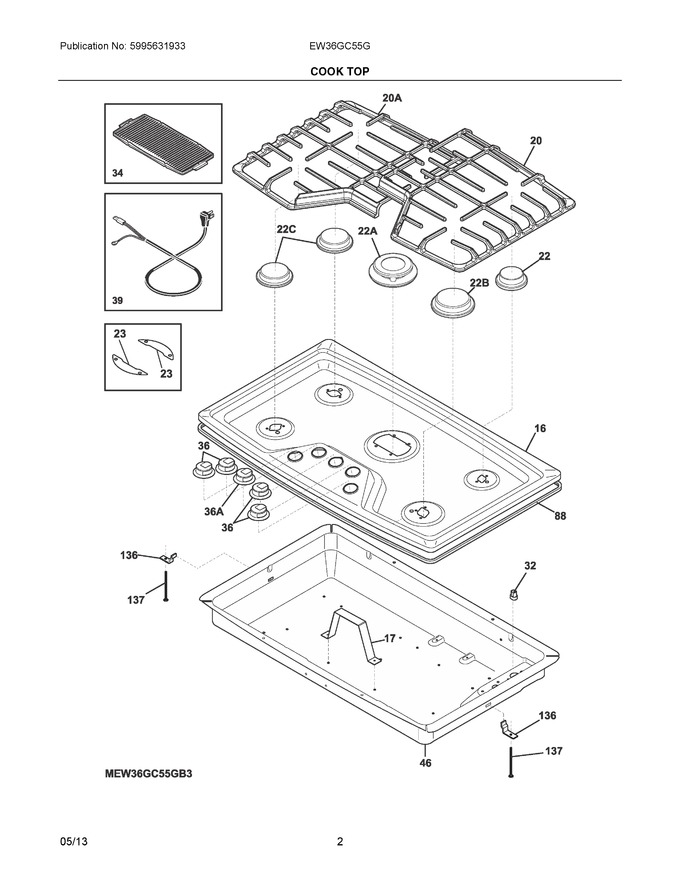

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318379120		Maintop, Black, W/graphics		Appelez-nous	-
17	318406301		Bracket, Retainer		Appelez-nous	-
20	318391604		Grate, Top Burner, Black, Rh				$ 221.10
22	316548600		Cap, Burner, 5k, Black				$ 87.70
23	318406901		Plate, Decorative, Stainless, (2)		Appelez-nous	-
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
34	318251609		Griddle, 36" Cooktop Optional Accessory				$ 183.44
36	318905201		Knob, Burner, Black, (3)				$ 125.60
39	318144006		Cord, Service		Appelez-nous	-
46	318279004		Box, Burner		Appelez-nous	-
88	318280121		Gasket, Cooktop, 93				$ 156.92
136	318264301		Support, Box, (2)				$ 42.95
137	5303285443		Screw, Lock Bracket, 10-24 X 2.00		Appelez-nous	-
20A	318391704		Grate, Top Burner, Black, Lh				$ 226.19
22A	316511502		Cap, Burner, 18k, Black				$ 248.45
22B	316548800		Cap, Burner, 14k, Black				$ 131.46
22C	316548700		Cap, Burner, 9.5k, Black, (2)				$ 134.23
36A	318905204		Knob, Burner, Black, Dual				$ 115.45
