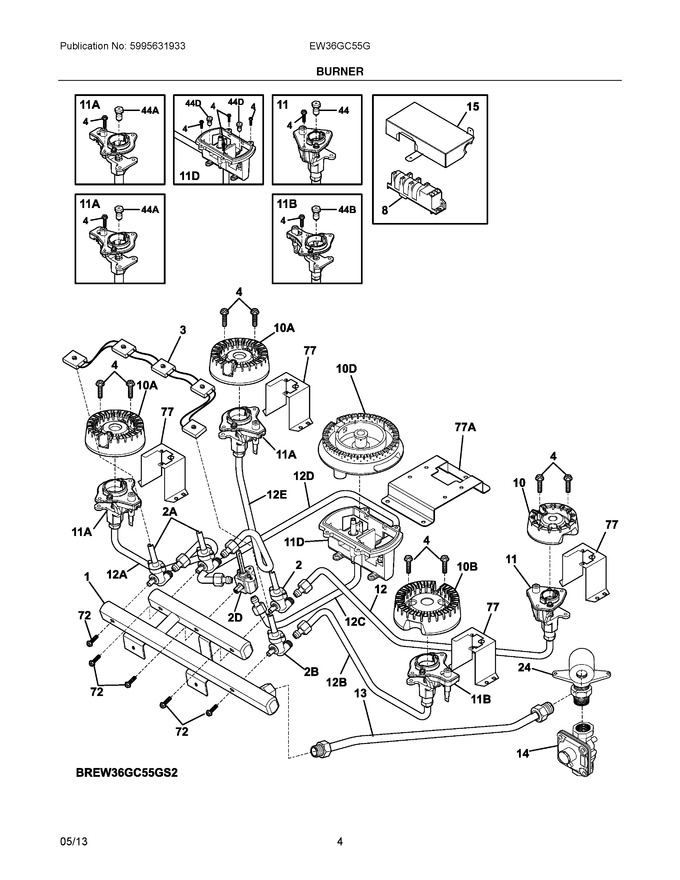

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318379210		Manifold Pipe		Appelez-nous	-
2	318387400		Valve, Burner, 5k				$ 174.43
3	318232621		Wiring Harness, W/igntr Switch				$ 93.58
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
8	808608804		Module, Spark   (Replaces: 318079001)			Immediately	$ 76.06
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
12	318385803		Tubing, Top Burner, 5k, Right Rear		Appelez-nous	-
13	318383400		Pipe, Manifold Inlet		Appelez-nous	-
14	318122706		Regulator, Pressure				$ 114.83
15	318024211		Deflector, Spark Module		Appelez-nous	-
24	318054010		Elbow, Fitting				$ 172.23
44	316527504		Orifice, Burner, 5k				$ 22.68
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	318920309		Bracket, Burner Mtg, (3)		Appelez-nous	-
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10D	316525401		Burner, Sealed, Dual, 18k				$ 187.54
11A	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11B	316543204		Ignitor/orifice Assy., Top Burner, 14k				$ 12.33
11D	316525103		Ignitor/orifice Assy., Top Burner, 18k, W/holder				$ 219.39
12A	318385802		Tubing, Top Burner, 9.5k, Left Front				$ 29.53
12B	318385804		Tubing, Top Burner, 14k, Right Front		Appelez-nous	-
12C	318385800		Tubing, Top Burner, 18k, Center				$ 28.25
12D	318385801		Tubing, Top Burner, 18k, Center				$ 29.03
12E	318385805		Tubing, Top Burner, 9.5k, Left Rear		Appelez-nous	-
2A	318387401		Valve, Top Burner, 9.5k				$ 166.56
2B	318387402		Valve, Top Burner, 14k				$ 182.86
2D	316574901		Valve, Top Burner, 18k				$ 89.51
44A	316527500		Orifice, Burner, 9.5k				$ 21.40
44B	316527511		Orifice, Burner, 14k				$ 19.85
44D	316523512		Orifice, Top Burner, 18k		Appelez-nous	-
77A	318384104		Bracket, Burner, Dual		Appelez-nous	-
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-
NI	5303311306		Screw, 8-18 X 0.375, (4)		Appelez-nous	-
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318127446		Lp Conversion Kit		Appelez-nous	-
NI	318199780		Wiring Harness, Ignitor				$ 100.56
NI	318024207		Deflector, Quick Connect		Appelez-nous	-
NI	5303323137		Screw, 8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NIA	5304481623		Screw, #10-32x1/2				$ 9.61
