01 - Cover

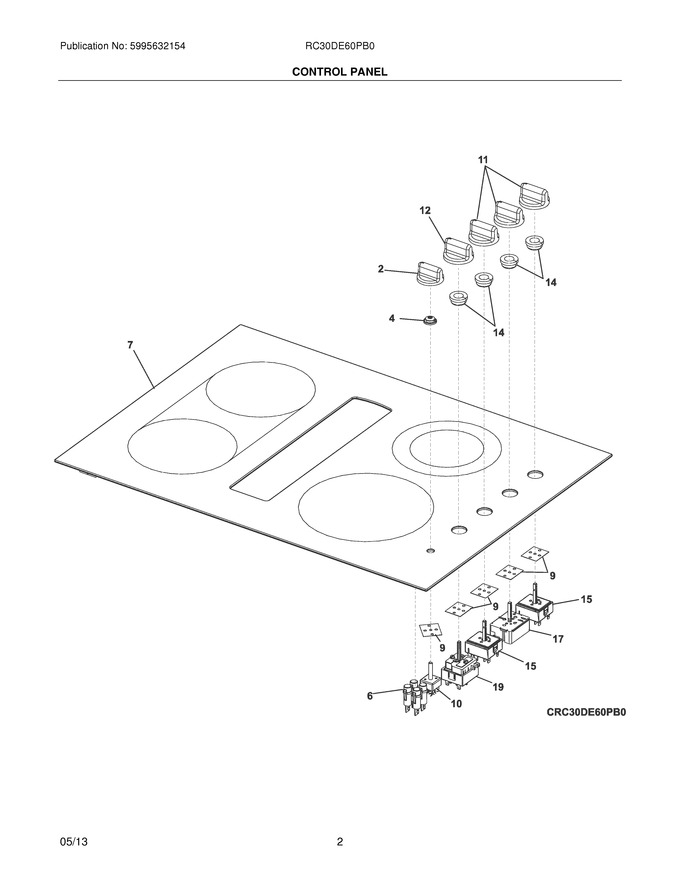

03 - Control Panel
05 - Main Top/surface Units
06 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 316564422 | Knob,control ,black ,blower |
|
- | |||||
| 4 | 5304485474 | Seal,stem ,blower Control |
|
- | |||||
| 7 | 5304491864 | Main Top Assembly,glass ,black |
|
- | |||||
| 9 | 5304485480 | Seal,burner Switch ,(5) |
|
- | |||||
| 11 | 316564421 | Knob,control ,black ,(3) |
|
- | |||||
| 12 | 316564423 | Knob,control ,black |
|
- | |||||
| 14 | 318148900 | Bushing,switch Stem ,(4) |
|
$ 54.92 | |||||
| F10 | 5304485481 | Switch,blower ,3 Speed ,rotary |
|
$ 178.45 | |||||
| F15 | 318191000 | Switch,infinite ,dual Element |
|
Immediately | $ 102.48 | ||||
| F17 | 318293825 | Switch,infinite ,single Element |
|
Immediately | $ 99.10 | ||||
| F19 | 318531500 | Switch,infinite ,turbo Element |
|
Immediately | $ 110.14 | ||||
| F6 | 5304485476 | Light,indicator ,(4) |
|
- |
