01 - Cover
03 - Control Panel

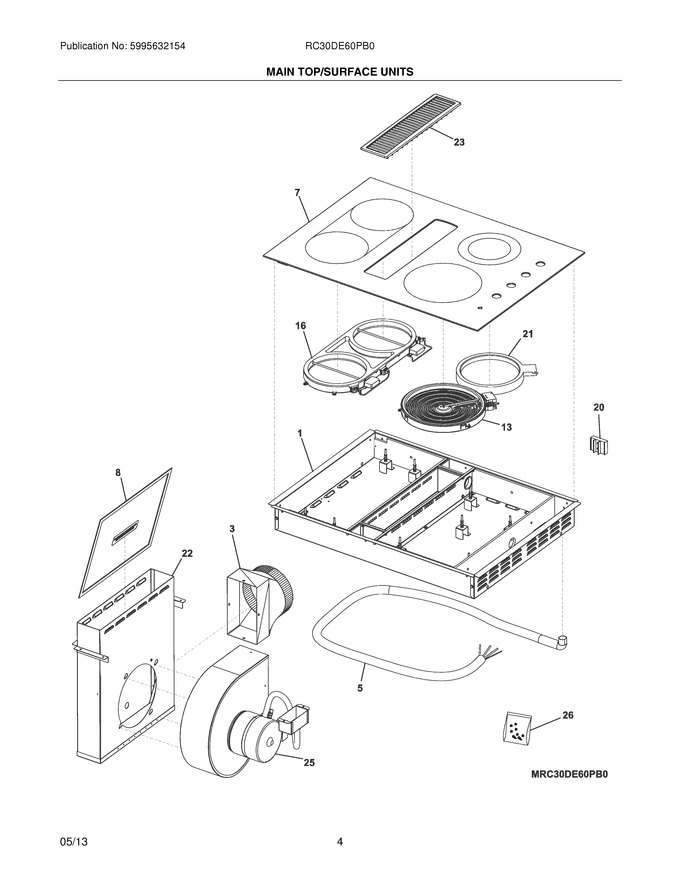

05 - Main Top/surface Units
06 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304485470 | Box,burner ,30`` |
|
- | |||||
| 3 | 5304485473 | Transition,exhaust |
|
- | |||||
| 7 | 5304491864 | Main Top Assembly,glass ,black |
|
- | |||||
| 8 | 5304485479 | Filter,blower Air |
|
- | |||||
| 22 | 5304485484 | Plenum Assembly,blower |
|
- | |||||
| 23 | 5304491865 | Grate,vent ,w/packaging |
|
- | |||||
| 26 | 5304491866 | Hardware Assembly,cooktop Mtg. |
|
- | |||||
| F13 | 8583165300010 | Element,surface ,9`` ,turbo ,3200w ,radiant (Replaces: 316530000) |
|
Immediately | $ 76.06 | ||||
| F16 | 318258201 | Element,bridge ,1800/2600 (Replaces: 318178200) |
|
Immediately | $ 480.54 | ||||
| F20 | 5304485482 | Block,terminal |
|
- | |||||
| F21 | 5304485483 | Element,dual ,1800/800 Watt ,radiant |
|
$ 388.48 | |||||
| F25 | 5304485487 | Blower Assembly |
|
$ 1,233.11 | |||||
| F5 | 5304485475 | Conduit Assembly,power Supply |
|
- | |||||
| FNI | 5304485486 | Harness,wiring ,main |
|
- |
