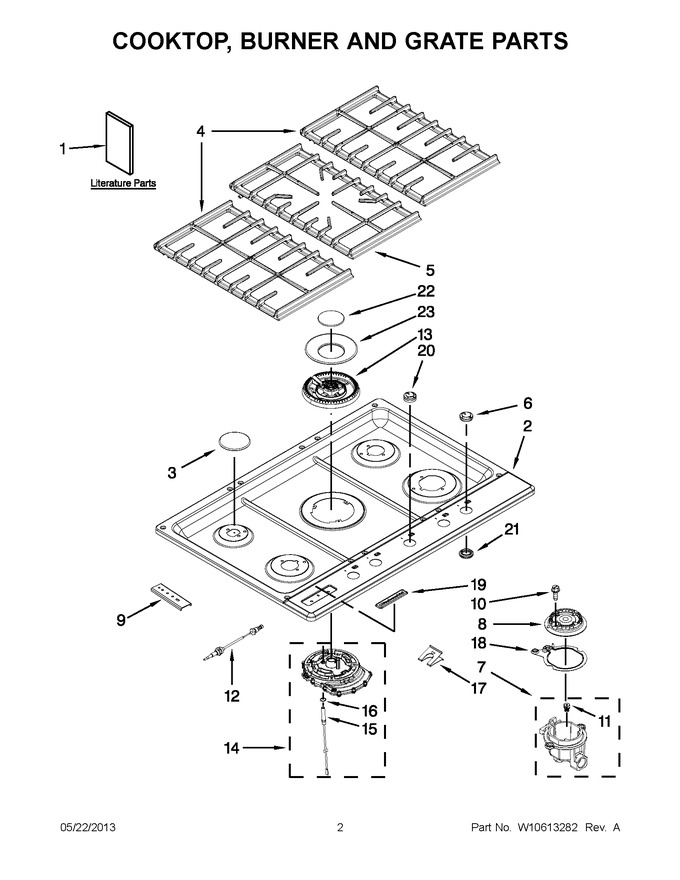

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves And Switches Parts
03 - Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10526085 | Installation Instructions |
|
- | |||||
| 1 | 8304571 | Instructions, Undercounter |
|
- | |||||
| 1 | W10411933 | Use & Care Guide |
|
- | |||||
| 1 | W10578167 | Diagram, Wiring |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10397740 | Cooktop |
|
$ 219.29 | |||||
| 3 | WP8286816 | Cap, Burner (black (small)) (Replaces: 8286816) |
|
$ 94.92 | |||||
| 3 | WP8286817 | Cap, Burner (black (medium)) (Replaces: 8286817) |
|
$ 100.88 | |||||
| 3 | WP8286818 | Cap, Burner (black (large)) (Replaces: 8286818) |
|
$ 100.97 | |||||
| 4 | 8286661 | Grate,right |
|
$ 89.11 | |||||
| 4 | 8286659 | Grate, Left |
|
$ 91.14 | |||||
| 5 | 8287048 | Grate, Center |
|
$ 88.87 | |||||
| 6 | WPW10132192 | Knob, Control (stainless) (Replaces: W10132192) |
|
$ 53.82 | |||||
| 7 | W10140570 | Orifice, Holder 10k (right Front) |
|
$ 69.44 | |||||
| 7 | W10140569 | Orifice, Holder 7k (right Rear) |
|
$ 69.13 | |||||
| 7 | 8286821 | Orifice, Holder 9.1 K (left Front) |
|
$ 69.13 | |||||
| 7 | 8286820 | Orifice, Holder 6k (left Rear) |
|
$ 68.99 | |||||
| 8 | WP8286815 | Head, Burner (right Front) (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| 8 | WP8286814 | Head, Burner (left Front & Right Rear) (Replaces: 8286814) |
|
$ 106.79 | |||||
| 8 | WP8286813 | Head, Burner (left Rear) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 9 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 10 | WP8287059 | Screw (Replaces: 8287059) |
|
Immediately | $ 7.02 | ||||
| 11 | W10791076 | Orifice (ng) 9100 Btu (left Front) (Replaces: W10151347) |
|
$ 85.86 | |||||
| 11 | W10791072 | Orifice (ng) 10,000 Btu (right Front) (Replaces: W10151349) |
|
$ 85.86 | |||||
| 11 | W10151350 | Orifice (ng) 7000btu (right Rear) |
|
$ 72.95 | |||||
| 11 | W10791614 | Orifice (ng) 6000 Btu (left Rear) (Replaces: W10151348) |
|
$ 85.86 | |||||
| 12 | WPW10560001 | Wiring, Electrode (left Front) (Replaces: 8286722) |
|
$ 71.52 | |||||
| 12 | 8286723 | Wiring, Electrode (left Rear) |
|
$ 69.68 | |||||
| 12 | 8286724 | Wiring, Electrode (right Front) |
|
$ 30.12 | |||||
| 12 | W10854967 | Wiring, Electrode (right Rear) (Replaces: 8286725) |
|
Immediately | $ 41.37 | ||||
| 13 | W10836409 | Spreader, Burner (Replaces: W10398571) |
|
Immediately | $ 115.45 | ||||
| 14 | WPW10617292 | Assembly, Burner Base (15k) (Replaces: W10409115) |
|
$ 262.84 | |||||
| 15 | WPW10398577 | Electrode (Replaces: W10398577) |
|
$ 127.04 | |||||
| 16 | W10416057 | Oring |
|
$ 66.97 | |||||
| 17 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 18 | 8286930 | Gasket, Orifice (left Rear) |
|
$ 82.05 | |||||
| 18 | 8286931 | Gasket, Orifice (left Front & Right Rear) |
|
$ 53.77 | |||||
| 18 | 8286932 | Gasket, Orifice (right Front) |
|
$ 82.11 | |||||
| 19 | WPW10243391 | Badge (stainless) (Replaces: W10243391) |
|
$ 49.98 | |||||
| 20 | W10132191 | Knob, Special (stainless) |
|
$ 53.42 | |||||
| 21 | W10132183 | Knob, Grommet |
|
$ 5.65 | |||||
| 22 | WPW10398575 | Cap, Inner Burner (black) (Replaces: W10398575) |
|
$ 26.76 | |||||
| 23 | W10846732 | Cap, Outer Burner (black) (Replaces: W10398574) |
|
$ 89.24 |
