SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

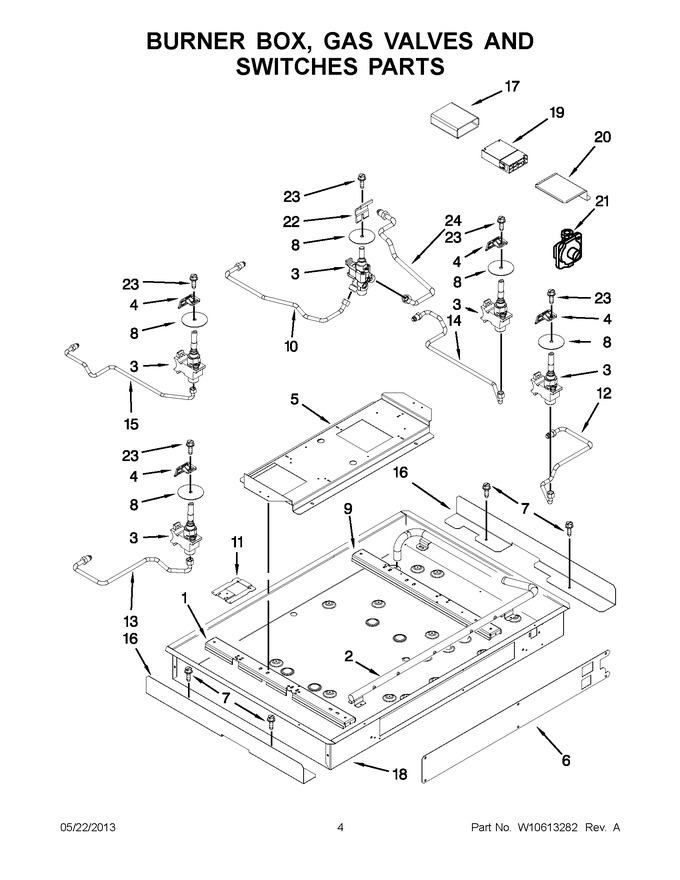

02 - Burner Box, Gas Valves And Switches Parts


03 - Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286753		Rail, Burner (left)		Appelez-nous	-
2	W10475135		Pipe, Manifold				$ 150.21
3	8286916		Valve, Single (left Rear)				$ 213.35
3	WP8286917		Valve, Single (center)   (Replaces: 8286917)				$ 259.37
3	8286920		Valve, Single (right Front)				$ 153.17
3	8286919		Valve, Single (left Front & Right Rear)				$ 212.06
4	8287055		Bracket, Single Valve				$ 65.54
5	W10411142		Rail, Center		Appelez-nous	-
6	8286740		Cover, Plate		Appelez-nous	-
7	W11676349		Screw   (Replaces: 8286921)			Immediately	$ 12.65
8	W10140571		Seal, Valve Shaft				$ 6.60
9	8286728		Rail, Burner Right		Appelez-nous	-
10	W10526602		Tube, Inner Crown				$ 55.78
11	W10400357		Bracket, Manifold		Appelez-nous	-
12	W10526591		Tubing, Gas Burner (right Front)		Appelez-nous	-
13	W10526477		Tubing, Gas Burner (left Front)		Appelez-nous	-
14	W10526596		Tubing, Gas Burner (right Rear)		Appelez-nous	-
15	W10526590		Tubing, Gas Burner (left Rear)		Appelez-nous	-
16	8286771		Shield, Heat		Appelez-nous	-
17	8287102		Insulation, Spark Module		Appelez-nous	-
18	W10132197		Box, Burner		Appelez-nous	-
19	WPW10475150		Module, Spark   (Replaces: W10475150)			Immediately	$ 219.54
20	W10132198		Cover, Reignition Module		Appelez-nous	-
21	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 177.34
22	8287056		Bracket, Dual Valve		Appelez-nous	-
23	8287057		Screw, Valve Bracket				$ 10.15
24	W10526603		Tube, Outer Crown				$ 35.65

    View Diagram in Separate Window       Print Part List
