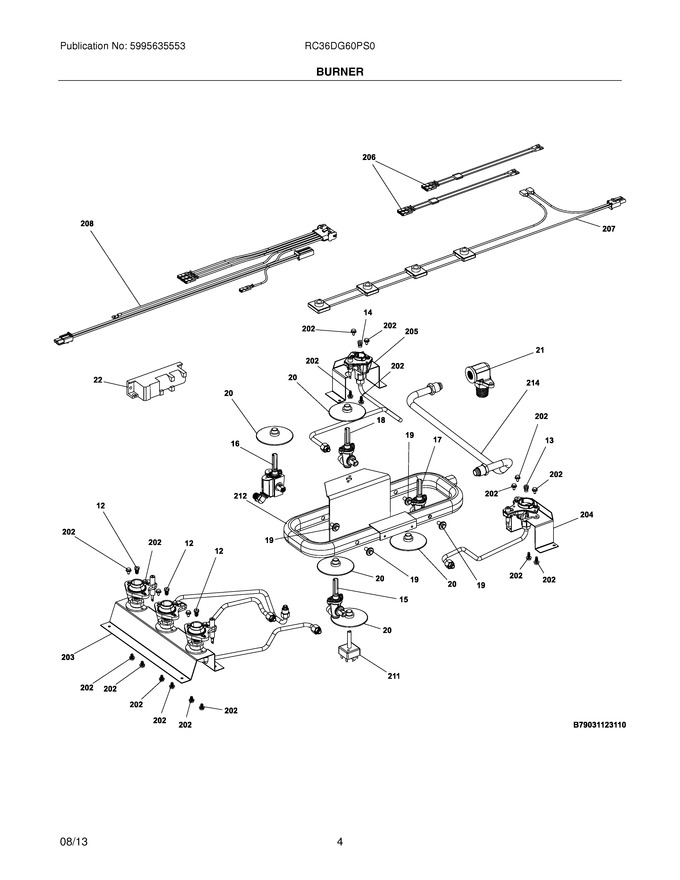

06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
20	318146301		Bushing				$ 34.34
21	318054010		Elbow,fitting				$ 172.23
202	5304485586		Hardware Assembly,fastener/screws ,misc.		Appelez-nous	-
F12	318362303		Orifice,burner ,bridge				$ 22.75
F13	316527509		Orifice,burner ,17k				$ 19.85
F14	316527504		Orifice,burner ,5k				$ 22.68
F15	318233910		Valve,top Burner ,9500 Btu				$ 132.56
F16	318321800		Valve,burner ,rear ,bridge ,dual Port		Appelez-nous	-
F17	318233940		Valve,burner ,18.2k				$ 162.23
F18	318387400		Valve,burner ,5k				$ 174.43
F203	5304485587		Holder Assembly,ignitor/orifice ,bridge Burner		Appelez-nous	-
F204	5304485588		Holder Assembly,ignitor/orifice ,18.2k Burner		Appelez-nous	-
F205	5304485589		Holder Assembly,ignitor/orifice ,5k Burner		Appelez-nous	-
F206	5304485590		Harness,wiring ,spark Module		Appelez-nous	-
F207	5304485591		Harness,wiring ,valve ,w/switches		Appelez-nous	-
F208	5304485592		Harness,wiring ,blower		Appelez-nous	-
F211	5304485481		Switch,blower ,3 Speed ,rotary				$ 178.45
F212	5304485596		Manifold,w/bracket		Appelez-nous	-
F214	5304485598		Tube,connection ,manifold		Appelez-nous	-
F22	5304505695		Module,spark   (Replaces: 316135702)			Immediately	$ 68.16
FNI	5304485603		Lp Conversion Kit,w/instructions		Appelez-nous	-
NI	316902491		Instructions,lp Conversion		Appelez-nous	-
