SELECT A DIAGRAM

01 - Cover

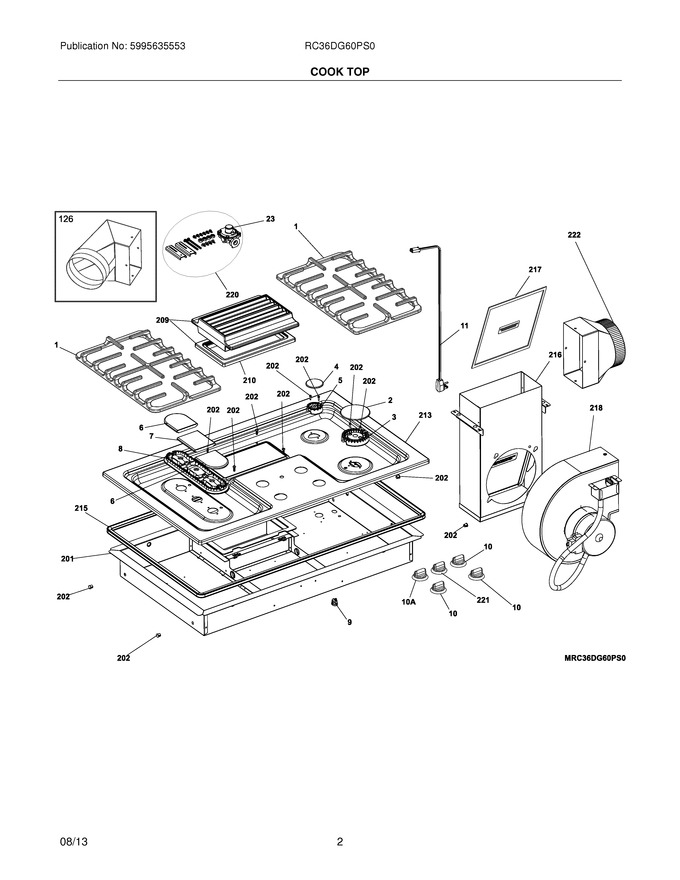

03 - Cook Top


05 - Burner


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304491968		Grate,double ,(2)		Appelez-nous	-
2	5304508468		Cap,17k Burner ,black   (Replaces: 316262104)				$ 49.45
4	5304508441		Cap,5k Burner ,matte ,black   (Replaces: 316261704)			Immediately	$ 35.04
6	316458703		Cap,bridge Burner ,black ,end				$ 204.84
7	316458603		Cap,bridge Burner ,black ,center				$ 224.39
9	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
10	5304491969		Knob,valve ,stainless		Appelez-nous	-
11	318144006		Cord,service		Appelez-nous	-
126	5304488297		Duct,transition ,90 Deg Kit		Appelez-nous	-
201	5304485585		Box,burner		Appelez-nous	-
202	5304485586		Hardware Assembly,fastener/screws ,misc.		Appelez-nous	-
209	5304485593		Grate,vent ,w/seal		Appelez-nous	-
210	5304491961		Seal,vent Grate		Appelez-nous	-
213	5304491971		Main Top,assembly ,stainless ,w/gasket		Appelez-nous	-
215	5304485599		Gasket,cook Top		Appelez-nous	-
216	5304491963		Plenum Assembly,blower		Appelez-nous	-
217	5304485601		Filter,grease				$ 216.27
221	5304491972		Knob,blower ,stainless		Appelez-nous	-
222	5304485473		Transition,exhaust		Appelez-nous	-
10A	5304491970		Knob,valve ,stainless ,bridge Burner		Appelez-nous	-
F218	5304491964		Blower Assembly				$ 1,079.43
F220	5304491965		Installation Kit,mounting ,w/regulator		Appelez-nous	-
F23	318122706		Regulator,pressure				$ 114.83
F3	316438400		Burner,sealed ,17k			Immediately	$ 83.42
F5	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F8	316458900		Burner,sealed ,bridge				$ 280.60

    View Diagram in Separate Window       Print Part List
