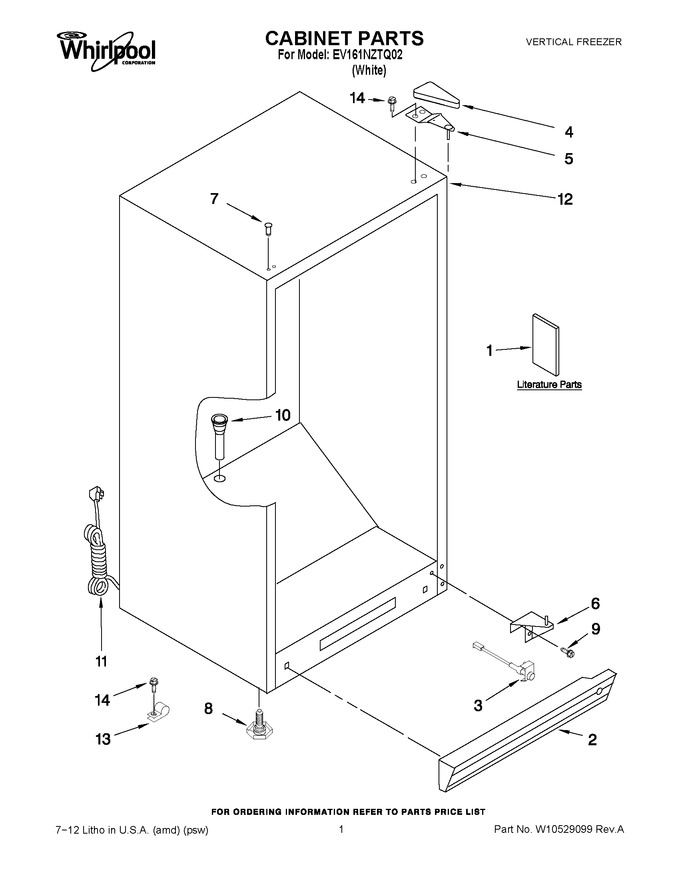

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326805		Energy Label/tag		Appelez-nous	-
1	W10326799		Owners Manual		Appelez-nous	-
2	4-60461-001		Grille				$ 72.59
3	3-82130-001		Power Light Assembly				$ 76.33
4	3-80838-003		Cover, Hinge				$ 4.50
5	2-81016-105		Hinge, Top				$ 37.06
6	4-82693-002		Hinge, Bottom				$ 72.12
7	2-25702-008		Plug, Hole		Appelez-nous	-
8	WP3-82710-001		Leg, Leveler   (Replaces: 3-82710-001)			Immediately	$ 18.29
9	WP8204624		Screw   (Replaces: 1-80271-103)				$ 14.99
10	3-60696-001		Grommet, Drain				$ 32.33
11	4-82399-001		Cord, Power				$ 52.24
12	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
13	3-25095-011		Clamp, Tube		Appelez-nous	-
14	WP489478		Screw   (Replaces: 3-80675-105)				$ 6.98
