SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts

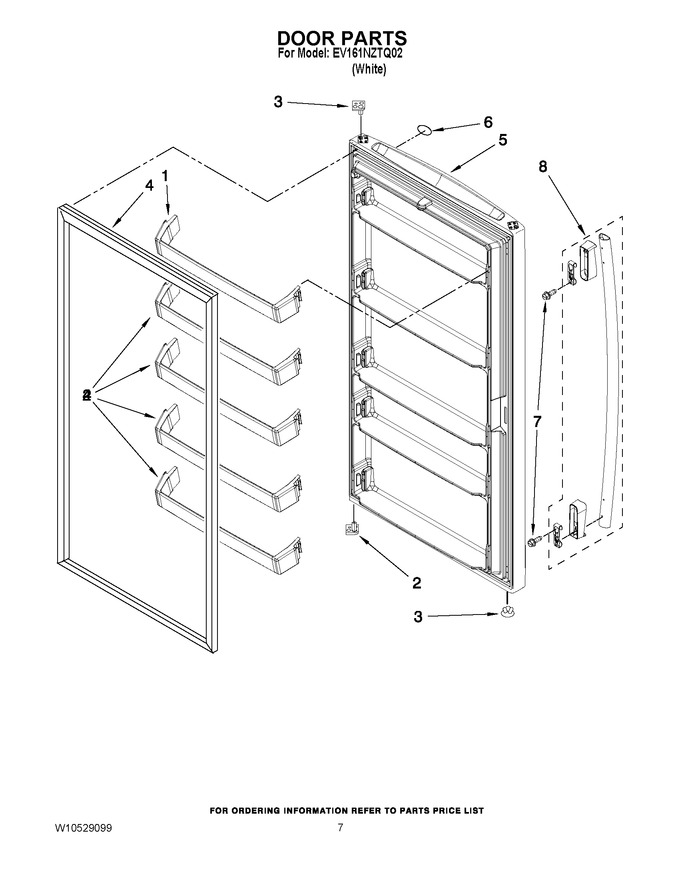

04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4-65450-001		Rail, Door   (Replaces: 4-65450-001)				$ 73.45
2	2-81125-001		Stop-door		Appelez-nous	-
3	WP2189000		Plug, Handle   (Replaces: 2189000)			Immediately	$ 6.66
4	WP4-65151-001		Gasket, Door   (Replaces: 4-65151-001)				$ 303.88
5	4-82827-073		Door Assembly (includes Interior Door Panel)		Appelez-nous	-
6	W11178521		Nameplate   (Replaces: W10481434)			Immediately	$ 56.82
7	WPW10288153		Stud, Handle   (Replaces: W10288153)			Immediately	$ 7.82
8	WPW10127761K		Handle   (Replaces: W10127761K)				$ 168.00

    View Diagram in Separate Window       Print Part List
