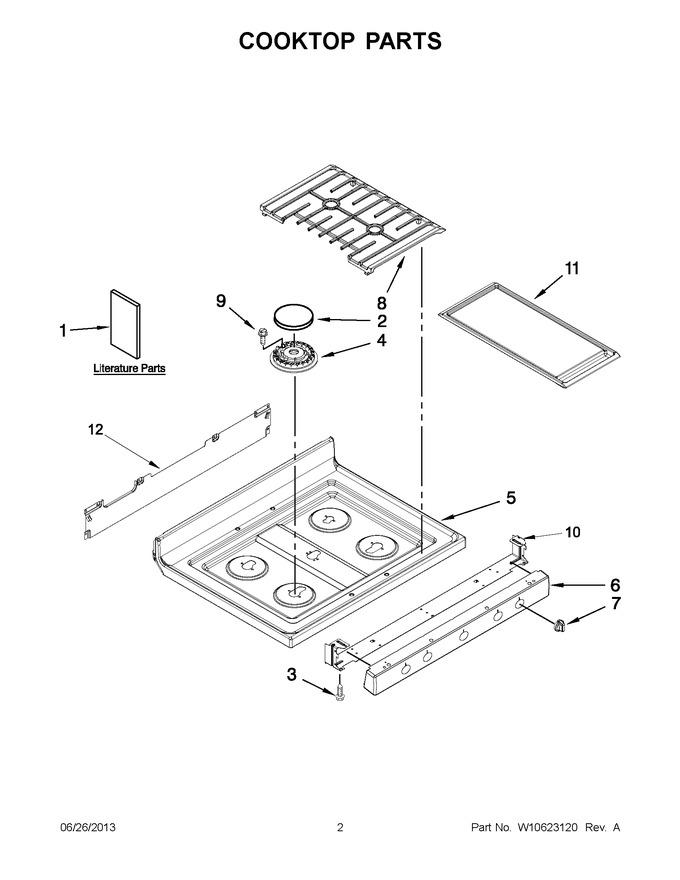

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10392920 | Owners Manual Wiring Diagram |
|
- | |||||
| 1 | W10538797 | Tech Sheet (english) |
|
- | |||||
| 1 | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 1 | W10553363 | Instructions, Installation |
|
- | |||||
| 2 | WPW10183374 | Burner Cap, Set (black) (Replaces: W10183374) |
|
$ 171.59 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 4 | WPW10515454 | Burner Head, Semi (9.5 K) (left Rear And Center) (Replaces: W10515454) |
|
$ 99.21 | |||||
| 4 | WPW10515453 | Burner Head, Auxi (5k) (right Rear) (Replaces: W10515453) |
|
$ 85.10 | |||||
| 4 | WPW10515455 | Burner Head, Ultra Rapid (15k) (left Front And Right Front) (Replaces: W10515455) |
|
Immediately | $ 101.22 | ||||
| 5 | W10366730 | Cooktop (black) |
|
- | |||||
| 5 | W10366729 | Cooktop (white) |
|
- | |||||
| 6 | W10441313 | Panel, Manifold (black) |
|
- | |||||
| 6 | W10441315 | Panel, Manifold (stainless) |
|
- | |||||
| 6 | W10441312 | Panel, Manifold (white) |
|
$ 135.63 | |||||
| 7 | WPW10370188 | Knob, Control (black) (Replaces: W10370188) |
|
$ 17.82 | |||||
| 7 | WPW10370187 | Knob, Control (white) (Replaces: W10370187) |
|
$ 18.45 | |||||
| 7 | WPW10370189 | Knob, Control (stainless) (Replaces: W10370189) |
|
Immediately | $ 32.15 | ||||
| 8 | W11381652 | Grate, Set (black) (Replaces: W10451804) |
|
$ 322.91 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 6.42 | ||||
| 10 | W10534174 | Bracket, Mainfold |
|
- | |||||
| 11 | W10347385 | Kit, Griddle |
|
- | |||||
| 12 | W10530070 | Bracket, Rear Gas Cooktop |
|
- |
