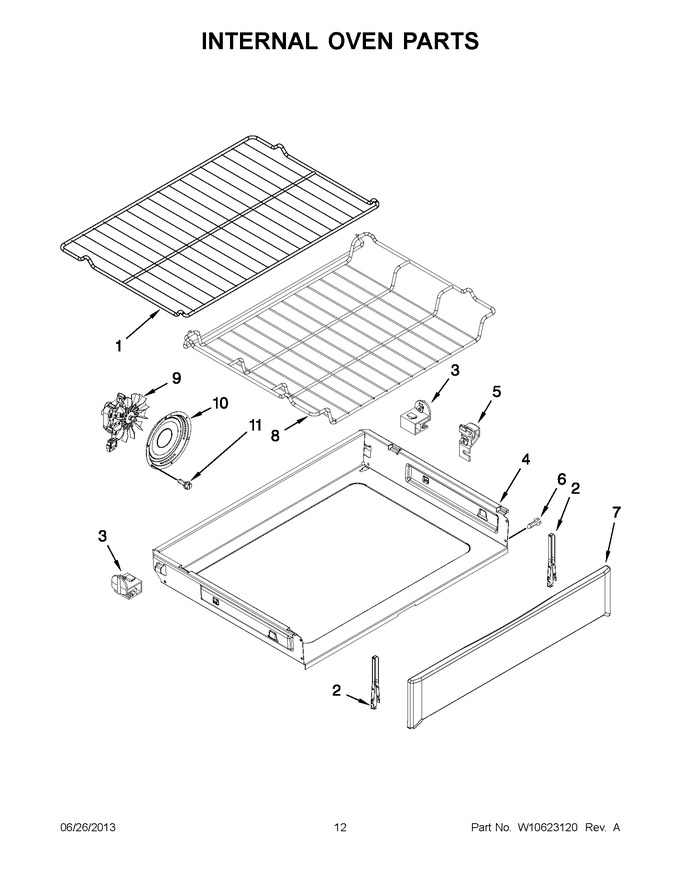

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10179196) |
|
Immediately | $ 42.16 | ||||
| 2 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 33.66 | |||||
| 3 | W10763667 | Glide, Drawer (rear) (Replaces: W10317899) |
|
Immediately | $ 96.91 | ||||
| 4 | W10813962 | Drawer, Storage (Replaces: W10300032) |
|
Immediately | $ 124.34 | ||||
| 5 | W10763667 | Glide, Drawer (front) (Replaces: W10317898) |
|
Immediately | $ 96.91 | ||||
| 6 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 7 | WPW10325671 | Panel, Drawer Front (black) (Replaces: W10325671) |
|
$ 165.56 | |||||
| 7 | WPW10325670 | Panel, Drawer Front (white) (Replaces: W10325670) |
|
$ 165.63 | |||||
| 7 | WPW10325673 | Panel, Drawer Front (stainless) (Replaces: W10325673) |
|
$ 186.20 | |||||
| 8 | W11256463 | Rack, Oven (gull Wing) (Replaces: W10289145) |
|
Immediately | $ 119.25 | ||||
| 9 | W11043837 | Motor, Fan (convection) (Replaces: W10389553) |
|
Immediately | $ 267.54 | ||||
| 10 | WPW10346154 | Cover, Convection (Replaces: W10346154) |
|
Immediately | $ 66.57 | ||||
| 11 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 |
