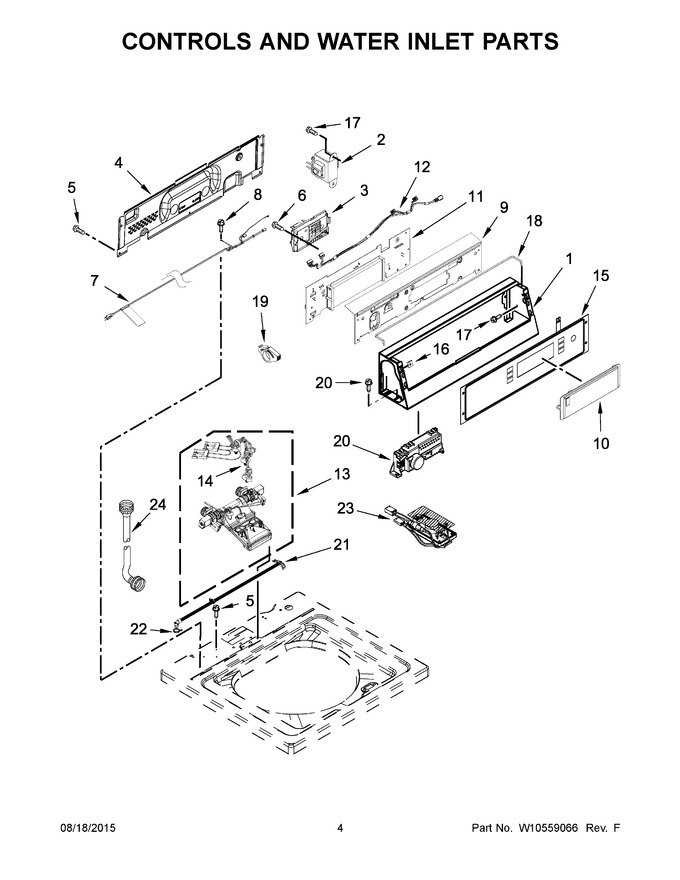

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10461094 | Console |
|
$ 159.97 | |||||
| 2 | W10751202 | Transformer, 240-22.5 Vac (Replaces: W10633921) |
|
$ 193.15 | |||||
| 3 | W10884155 | Control Unit Assembly, Machine & Motor (Replaces: W10491729) |
|
$ 191.80 | |||||
| 4 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 308.94 | ||||
| 5 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.07 | ||||
| 6 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 7 | W10520399 | Cord, Power |
|
- | |||||
| 8 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 6.98 | ||||
| 9 | W11243296 | Back Bracket, Control Panel (Replaces: W10698212) |
|
- | |||||
| 10 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 59.65 | |||||
| 11 | WPW10647075 | User Interface (Replaces: W10647075) |
|
$ 236.48 | |||||
| 12 | W11241226 | Harness, Upper (Replaces: W10567153) |
|
- | |||||
| 13 | W11179242 | Inlet Assembly, Water (Replaces: W10514372) |
|
Immediately | $ 202.62 | ||||
| 14 | W10520396 | Harness, Valve |
|
- | |||||
| 15 | W11173601 | Fascia (Replaces: W10506029) |
|
- | |||||
| 16 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 6.94 | |||||
| 17 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.04 | |||||
| 18 | WPW10157932 | Seal, Foam (Replaces: W10157932) |
|
Immediately | $ 7.25 | ||||
| 19 | WPW10663966 | Clamp, Hose (Replaces: W10348582) |
|
$ 192.22 | |||||
| 20 | WPW10482834 | Electronic Release Module (Replaces: W10482834) |
|
Immediately | $ 289.63 | ||||
| 21 | WPW10461189 | Assembly, Hose (Replaces: W10461189) |
|
$ 30.32 | |||||
| 22 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 7.56 | ||||
| 23 | W11173655 | Line Filter Assembly (Replaces: W10540623) |
|
- | |||||
| 24 | WPW10489643 | Hose, Water Inlet (hot) (Replaces: W10489643) |
|
$ 70.16 | |||||
| 24A | WPW10489648 | Hose, Water Inlet (cold) (Replaces: W10489648) |
|
$ 69.40 | |||||
| NI | W11384794 | 10a Cord Adaptor (austrailian) (Replaces: W10476818) |
|
- | |||||
| NI | WPW10476820 | 10a Cord Adapter (british) (Replaces: W10476820) |
|
$ 24.03 | |||||
| NI | W10446855 | 10a Cord Lock |
|
- | |||||
| NI | WPW10476822 | 10a Cord Adapter (european) (Replaces: W10476822) |
|
$ 69.35 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
