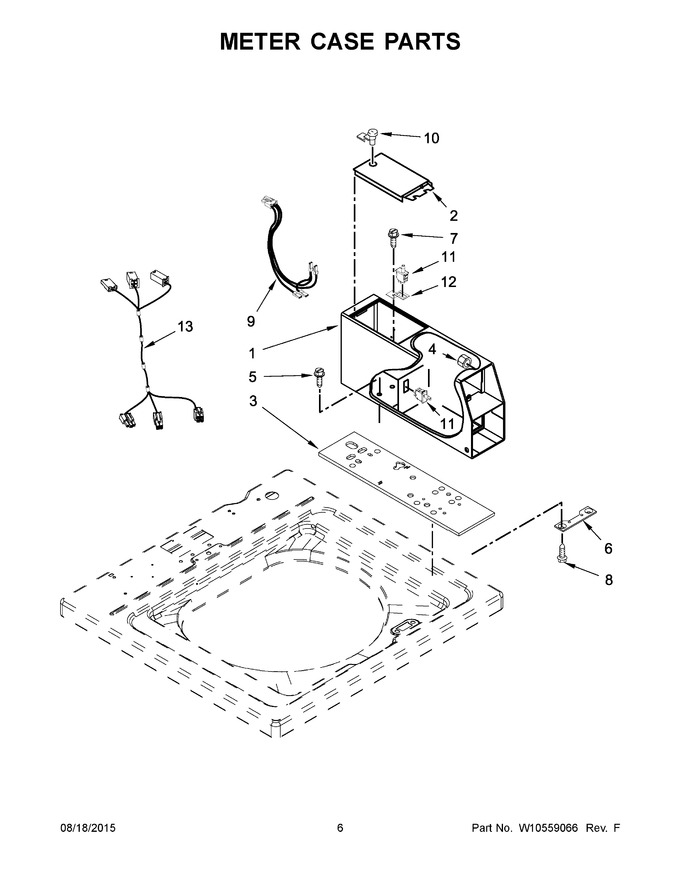

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10529176		Meter Case   (Replaces: W10529176)				$ 273.48
2	W11283272		Assembly, Service Door   (Replaces: 3351136)				$ 95.29
3	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 27.99
4	W10139060		Nut, 1/4-20		Appelez-nous	-
5	W11715721		Bolt   (Replaces: 3349065)				$ 6.41
6	3347825		Plate, Mounting		Appelez-nous	-
7	WPW10139210		Screw   (Replaces: W10139210)				$ 6.75
8	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
9	W11096090		Wire, Harness Sensor Switch   (Replaces: W10211244)				$ 11.48
10	W11315637		Assembly, Cam & Security Lock   (Replaces: 8316526)			Immediately	$ 36.42
11	W11123448		Switch, Vault Service Door   (Replaces: W10133289)		Appelez-nous	-
12	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
13	W11243417		Harness, Coin Extender   (Replaces: W10655203)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
