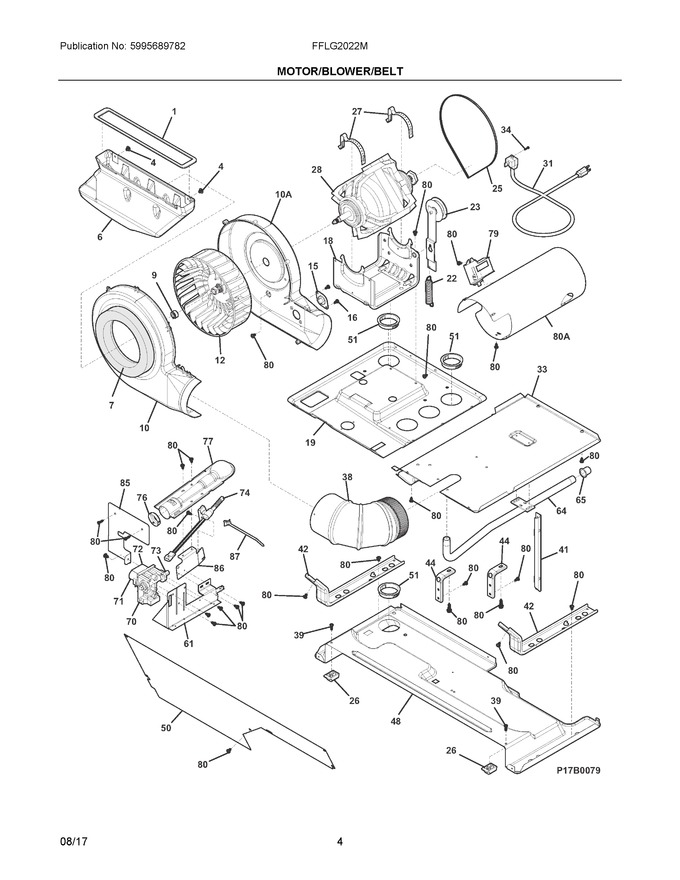

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal, Air Duct				$ 16.30
4	5308014350		Clip, End Cap Mtg, U-type		Appelez-nous	-
6	5304521121		Duct, Air   (Replaces: 134086300)				$ 118.56
7	3204490		Seal, Housing, To Air Duct				$ 14.18
8	3205245		Screw, Pan Head, 6-18ab X 0.60		Appelez-nous	-
9	5304488479		Clamp			Immediately	$ 32.09
10	134611700		Housing, Blower, Front, With Seal				$ 50.46
12	131476300		Blower Wheel			Immediately	$ 47.00
15	134587700		Thermistor, Control			Immediately	$ 56.39
16	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
18	131367110		Cradle, Motor W/idler   (Replaces: 131367100)				$ 68.75
19	137490900		Pan, Upper Lc, Dryer, Formed		Appelez-nous	-
22	3205241		Spring, Idler				$ 75.83
23	5304507499		Idler Arm Assy, With Pulley   (Replaces: 131863100)			Immediately	$ 42.66
25	137292700		Belt, Dryer, Lc			Immediately	$ 9.34
26	137511300		Block, Support		Appelez-nous	-
27	134242400		Clamp, Motor Mtg.			Immediately	$ 35.76
28	8581341966035		Motor, Dryer Drive, With Pulley   (Replaces: 134196600)			Immediately	$ 142.51
31	134500500		Power Cord, Electric Svce				$ 43.24
33	131731410		Shield, Access Area, Cover		Appelez-nous	-
34	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 13.46
38	3204320		Elbow, Exhaust Duct		Appelez-nous	-
39	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
41	131091300		Bracket, Support, Side		Appelez-nous	-
42	137304710		Bracket, Marriage, Dryer		Appelez-nous	-
44	3204326		Bracket, L Mounting, Cabinet Rear, External				$ 43.24
48	137329110		Pan, Bottom Lc Dryer		Appelez-nous	-
50	5304488478		Cover, Support, Lc Dryer		Appelez-nous	-
51	131453000		Bushing, Snap-in				$ 10.63
61	5303309493		Bracket, Gas Valve Mtg		Appelez-nous	-
64	140295139012		Pipe, Gas   (Replaces: 137076300)				$ 43.24
65	08015112		Cap, Pipe		Appelez-nous	-
70	5303207409		Valve, Gas				$ 433.76
71	5300622602		Solenoid, Secondary Coil		Appelez-nous	-
72	5308015680		Solenoid, Booster Coil		Appelez-nous	-
73	5303211036		Orifice, Natural Gas, Size 44		Appelez-nous	-
74	5304517325		Igniter Assy   (Replaces: 134393700)				$ 229.55
76	134714401		Collar, Alignment, Gas Valve   (Replaces: 134714400)				$ 11.57
77	134197700		Burner, Gas				$ 64.49
79	5303281135		Sensor, Radiant			Immediately	$ 102.06
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
85	134287300		Shield, Heat		Appelez-nous	-
86	134264800		Plate, Adapter		Appelez-nous	-
87	5304528020		Cable Tie, Push Mount, 5.20 Inch   (Replaces: 131964400)				$ 9.41
10A	137551800		Housing, Blower, Rear   (Replaces: 134608200)			Immediately	$ 107.00
80A	131712405		Tube, Burner   (Replaces: 131712401)				$ 34.70
NI	134391000		Lp Conversion Kit, Natural To Lp		Appelez-nous	-
