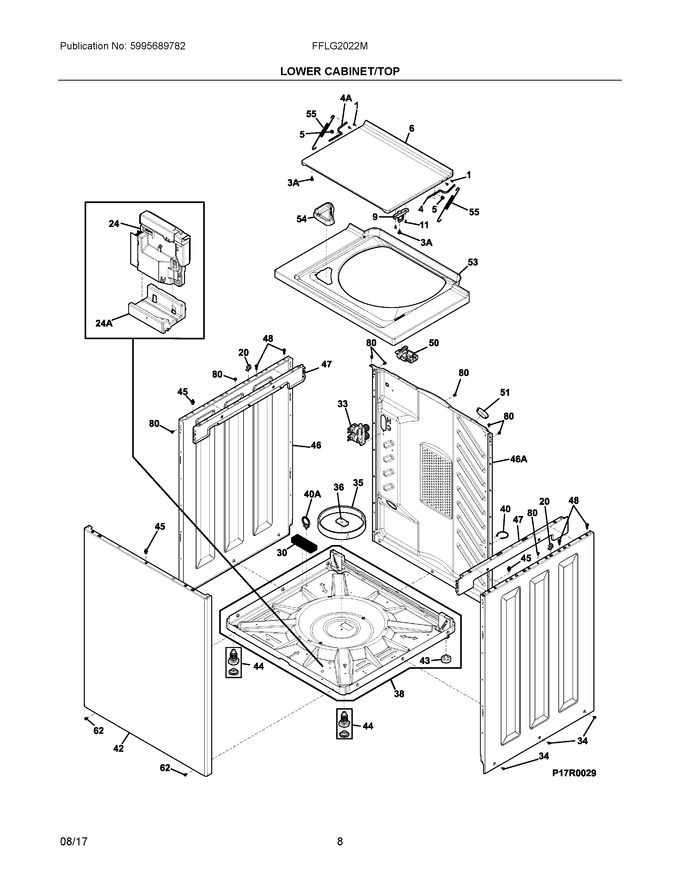

05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134203900		Screw, Pan Hd Phillips, 6-32 X 0.337, Dog Point				$ 10.85
4	137469900		Hinge Bar, Rh, Lc				$ 43.24
5	5304488483		Grommet, Hinge, Acetal		Appelez-nous	-
6	5303212872		Lid, Washer, White			Immediately	$ 345.16
9	137513712		Striker, Lid, White   (Replaces: 137513710)			Immediately	$ 13.01
11	3204368		Screw, Lid Strike Mtg, 6-20b X 0.375				$ 13.01
20	3204374		Pin, Slide, Side To Top				$ 78.67
24	137469101NH		Control Board, Motor, Main   (Replaces: 137469101)				$ 260.14
30	131663500		Cushion, Drain Hose, Base				$ 23.00
33	137465100		Valve-3 Coil, 120v 60hz Water				$ 178.57
34	131205500		Screw, 1/4-14 X 0.625				$ 13.46
35	5308002385		Snubber Ring				$ 54.86
36	3204380		Shipping Block				$ 12.29
38	137364600		Base Assembly, Self-leveling				$ 229.53
40	5303309503		Clip, Drain Hose, Back Sheet				$ 7.09
42	137455410		Panel, Front, Lc		Appelez-nous	-
43	131422200		Pad, Self Lvlg Leg, Rear			Immediately	$ 56.70
44	134548800		Leg, Leveling W/pad   (Replaces: 5303309673)			Immediately	$ 30.20
45	131346401		Pin, Panel Locator, Front			Immediately	$ 16.63
46	137272610		Panel, Washer Side, White, Lh/rh				$ 213.10
47	137304500		Bracket, Marriage, Lh/rh Washer		Appelez-nous	-
48	137329800		Screw 12-24 Unc X .75 Hex, Washer		Appelez-nous	-
50	137353300		Lock, Lid, External Switch			Immediately	$ 110.66
51	131453000		Bushing, Snap-in				$ 10.63
53	137190810		Panel, Washer Top Lc, White				$ 245.32
54	137205500		Bezel, Bleach/softener				$ 44.10
55	134890500		Spring, Lid Assist				$ 19.85
62	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
24A	137469200		Base, Motor Control				$ 65.10
3A	134075500		Bumper, Lid, Front				$ 17.35
40A	134261300		Clip, Drain Hose, Push-mount				$ 12.05
46A	137273201		Panel, Washer Back, Washed		Appelez-nous	-
4A	137470900		Hinge Bar, Lh, Lc				$ 43.24
NI	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
NIA	5304500534		Dispenser, Asmy, Softener   (Replaces: 137205400)				$ 116.24
NIB	137457400		Hose, Dispenser Asmy				$ 82.13
