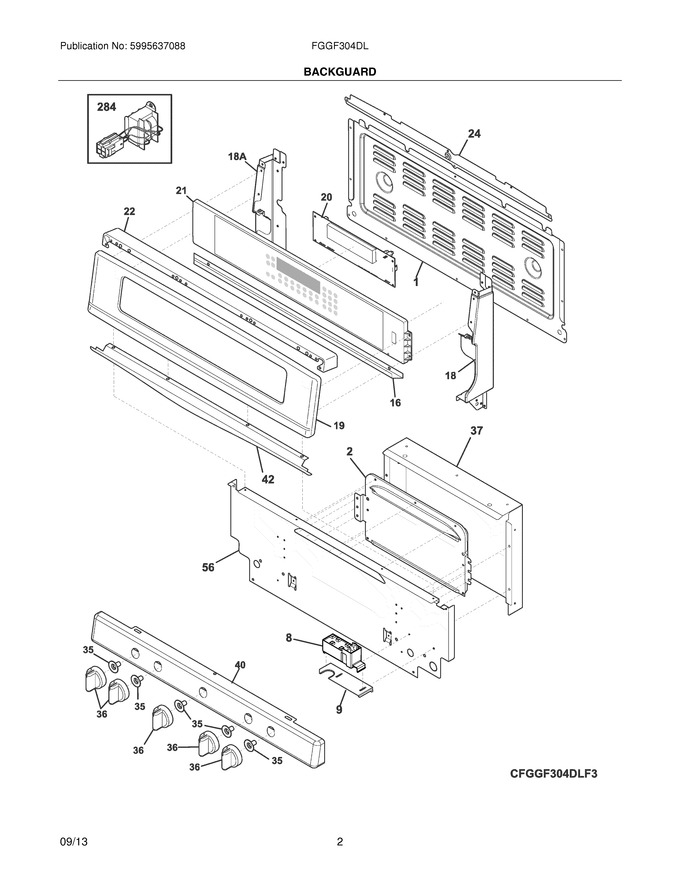

03 - Backguard


05 - Burner


07 - Body


09 - Main Top


11 - Doors


12 - Wiring Diagram


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314111		Panel,cover ,upper		Appelez-nous	-
2	318936501		Collector,flue Assembly		Appelez-nous	-
9	318387304		Bracket,spark Module		Appelez-nous	-
16	318571400		Brace,control Panel		Appelez-nous	-
18	318311932		End Cap,backsplash ,white ,rh		Appelez-nous	-
19	318573505		Panel,control ,white		Appelez-nous	-
22	318413500		Cap,top ,white ,backguard		Appelez-nous	-
24	318566201		Trim,back ,upper		Appelez-nous	-
35	318587800		Deflector,knob ,(5)		Appelez-nous	-
36	316545005		Knob,top Valve ,white ,(1)				$ 46.62
37	318572504		Box,deflector		Appelez-nous	-
40	318583611		Panel,manifold ,white		Appelez-nous	-
42	316416205		Trim,extrusion ,gray   (Replaces: 316416201)				$ 51.57
56	318534924		Shield,backguard ,white ,inner		Appelez-nous	-
18A	318311933		End Cap,backsplash ,white ,lh		Appelez-nous	-
F20	316259502		Controller,electronic ,es610		Appelez-nous	-
F21	318566020		Timer Assembly,es610w5 ,white ,w/overlay		Appelez-nous	-
F284	316536100		Transformer			Immediately	$ 210.83
F8	5304508269		Module,spark   (Replaces: 316262400)			Immediately	$ 105.46
FNI	318572705		Harness,communication ,cntl To Relay		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318573700		Bracket,control Panel		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8   (Replaces: 5304454881)				$ 10.02
