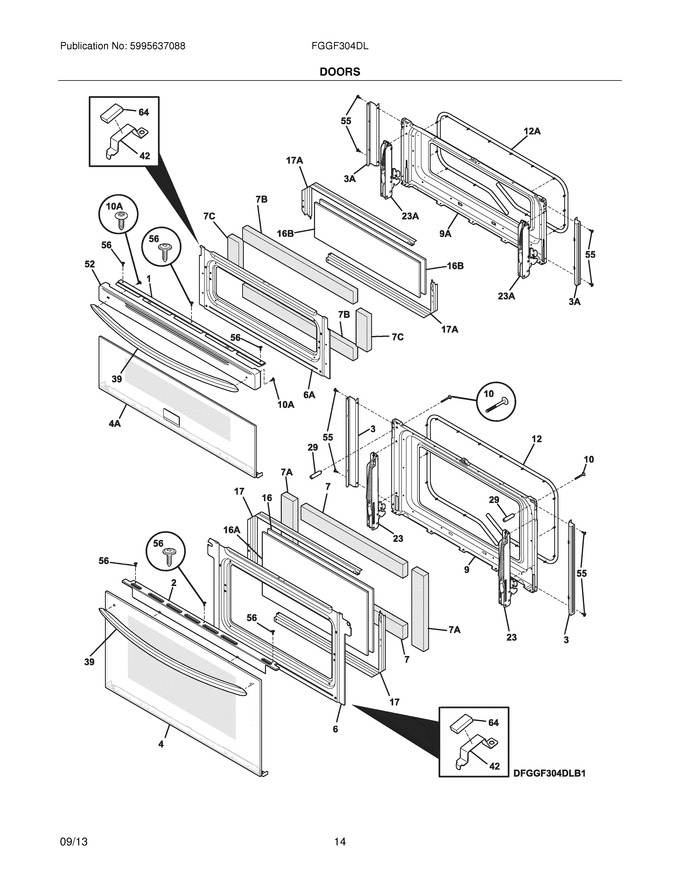

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318562703		Trim,top ,black ,upper Door		Appelez-nous	-
2	318260229		Trim,oven Door ,white ,top ,lower Door		Appelez-nous	-
3	318301431		Trim,oven Door ,white ,side		Appelez-nous	-
4	318403524		Glass Assy.,oven Door ,white ,outer ,w/trim		Appelez-nous	-
6	318260525		Baffle,door ,lower		Appelez-nous	-
7	318372018		Insulation,20.5 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372015)				$ 14.18
9	318259667		Liner,oven Door ,lower		Appelez-nous	-
10	5304453223		Screw,handle Mtg ,10-14 X 1.82 ,(2)			Immediately	$ 13.19
12	318053154		Seal,oven Door				$ 93.87
16	318212215		Glass,lower Oven ,heat Barrier ,hbi		Appelez-nous	-
17	318264721		Spacer,glass ,lower ,(2)		Appelez-nous	-
23	318567120		Hinge,door ,upper Oven ,(2)				$ 96.65
29	318014411		Spacer,door				$ 18.48
39	316544501		Handle,door ,white			Immediately	$ 131.57
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318304209		Trim,door ,white ,upper				$ 396.22
55	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
56	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
64	318165800		Spacer				$ 17.72
10A	5304453593		Screw,handle Mtg.				$ 10.53
12A	318053152		Seal,oven Door ,upper				$ 89.57
16A	318212216		Glass,oven Door ,heat Barrier ,hbii				$ 160.76
16B	318947300		Glass,door ,upper Oven ,(2)		Appelez-nous	-
17A	318264727		Spacer,glass ,upper ,(2)		Appelez-nous	-
23A	318567130		Hinge,door ,upper Oven ,(2)				$ 92.93
3A	318301421		Trim,upper Door ,white		Appelez-nous	-
4A	318934212		Glass Assembly,door ,white ,upper ,w/trim & Badge		Appelez-nous	-
6A	318260526		Baffle,door ,upper		Appelez-nous	-
7A	318372017		Insulation,door				$ 16.30
7B	318372016		Insulation,door				$ 17.72
7C	807168601		Insulation,6.625 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
9A	318259676		Liner,oven Door ,upper		Appelez-nous	-
NI	316433603		Label,anti-tip				$ 3.55
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
