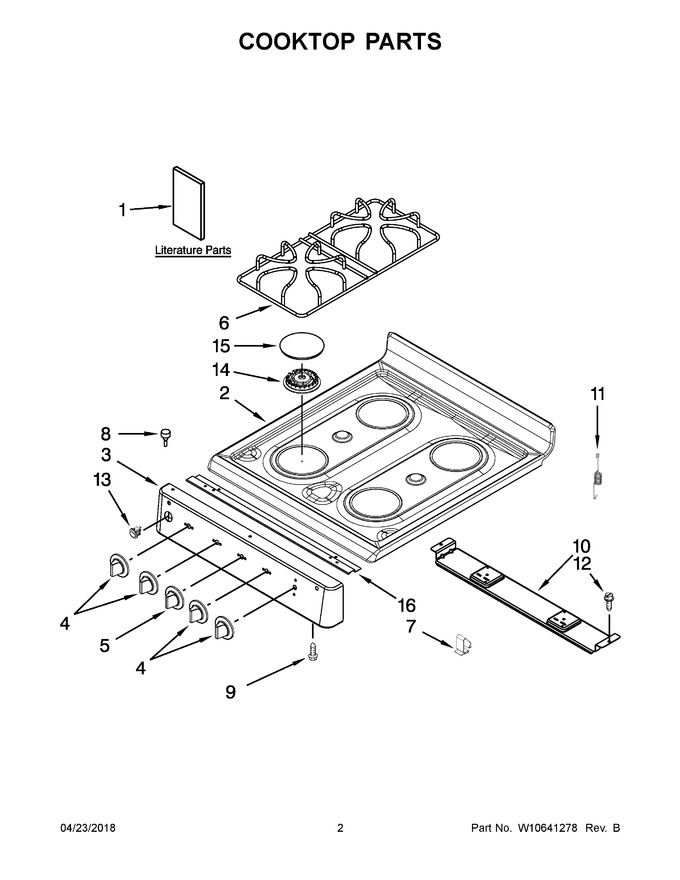

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10459123		Installation Instructions		Appelez-nous	-
2	WPW10179560		Cooktop (white)   (Replaces: W10179560)				$ 283.04
3	W10225327		Panel, Manifold (white)		Appelez-nous	-
4	WPW10483313		Knob, Burner (white)   (Replaces: W10483313)				$ 19.35
5	WPW10483330		Knob, Thermostat (white)   (Replaces: W10483330)				$ 19.35
6	WPW10180089		Grate, Burner (black)   (Replaces: W10180089)				$ 42.40
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	W10207167		Bumper, Cooktop		Appelez-nous	-
9	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
10	98012912		Support, Oven Burner		Appelez-nous	-
11	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
12	W10837731		Screw   (Replaces: 98006633)				$ 7.07
13	98011571		Switch, Rocker (white)		Appelez-nous	-
14	WPW10243396		Burner, Standard   (Replaces: W10243396)				$ 81.38
15	WP98017461		Cap, Burner (black)   (Replaces: 98017461)				$ 60.75
16	W10222744		Z Bracket, Manifold		Appelez-nous	-
1A	W10452012		Use And Care Guide		Appelez-nous	-
1B	98007032		Sheet, Tech		Appelez-nous	-
1C	98007130		Tips, Safe Cooking (english)		Appelez-nous	-
NI	98004294		Wire Tie, Insulation		Appelez-nous	-
NI	W10173886		Harness, Main		Appelez-nous	-
NI	W10361496		Harness, Switch		Appelez-nous	-
NI	3184020		Wire, Ground   (Replaces: 6610473)				$ 74.50
NI	3196696		Clip, Harness		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
