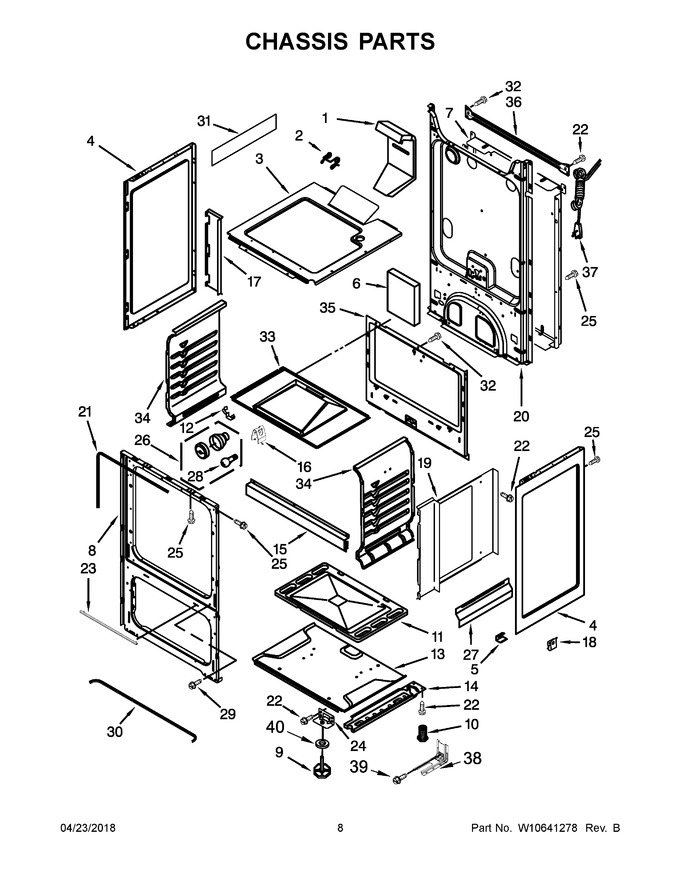

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10116396		Box, Flue   (Replaces: W10116396)				$ 80.13
2	98013690		Spring, Torsion (flue Box)		Appelez-nous	-
3	W10168214		Box, Burner		Appelez-nous	-
4	W11501467		Panel, Side (white)   (Replaces: 98010061)		Appelez-nous	-
5	98005502		Clip, Oven Botton				$ 12.10
6	W10185442		Counterweight		Appelez-nous	-
7	W10165402		Cover, Main Rear		Appelez-nous	-
8	W10212614		Frame, Front		Appelez-nous	-
9	WP3196037		Foot, Front   (Replaces: W10153610)				$ 74.67
10	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.07
11	98004450		Bottom, Oven				$ 166.37
12	98005642		Clip, Therm Bulb			Immediately	$ 74.64
13	98003945		Baffle, Base		Appelez-nous	-
14	98003830		Rail, Base		Appelez-nous	-
15	98012912		Support, Oven Burner		Appelez-nous	-
16	98005642		Clip, Therm Bulb			Immediately	$ 74.64
17	98006715		Shield, Channel		Appelez-nous	-
18	98009179		U-nut				$ 12.02
19	W10121634		Baffle, Side		Appelez-nous	-
20	98003944		Back, Main		Appelez-nous	-
21	W11522387		Seal, Oven Door   (Replaces: W10219461)			Immediately	$ 31.24
22	W10837731		Screw   (Replaces: 98006633)				$ 7.07
23	W10209302		Seal, Door		Appelez-nous	-
24	98007126		Base, Foot		Appelez-nous	-
25	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 12.62
26	W10856866		Socket, Light Bulb   (Replaces: W10114530)				$ 6.47
27	98007191		Shield, Heat (lower)		Appelez-nous	-
28	8009		Bulb, Light   (Replaces: 98004498)			Immediately	$ 16.80
29	WP98008545		Screw (black)   (Replaces: 98008545)				$ 15.94
30	W10555328		Seal, Broiler Door				$ 146.30
31	W10368736		Aluminum Foil		Appelez-nous	-
32	98006634		Screw		Appelez-nous	-
33	98004448		Top, Oven		Appelez-nous	-
34	98004452		Side, Oven (right Hand)		Appelez-nous	-
35	W10180590		Back, Oven		Appelez-nous	-
36	98010054		Support, Rear		Appelez-nous	-
37	W10196633		Power Cord		Appelez-nous	-
38	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
39	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
40	98007193		Spacer				$ 8.91
34A	98004451		Side, Oven (left Hand)		Appelez-nous	-
NI	W11684895		Insulation, Wrap   (Replaces: W10206735)		Appelez-nous	-
NI	W11684784		Insulation, Top   (Replaces: W10207891)		Appelez-nous	-
NI	W11684896		Insulation, Back   (Replaces: W10137234)		Appelez-nous	-
