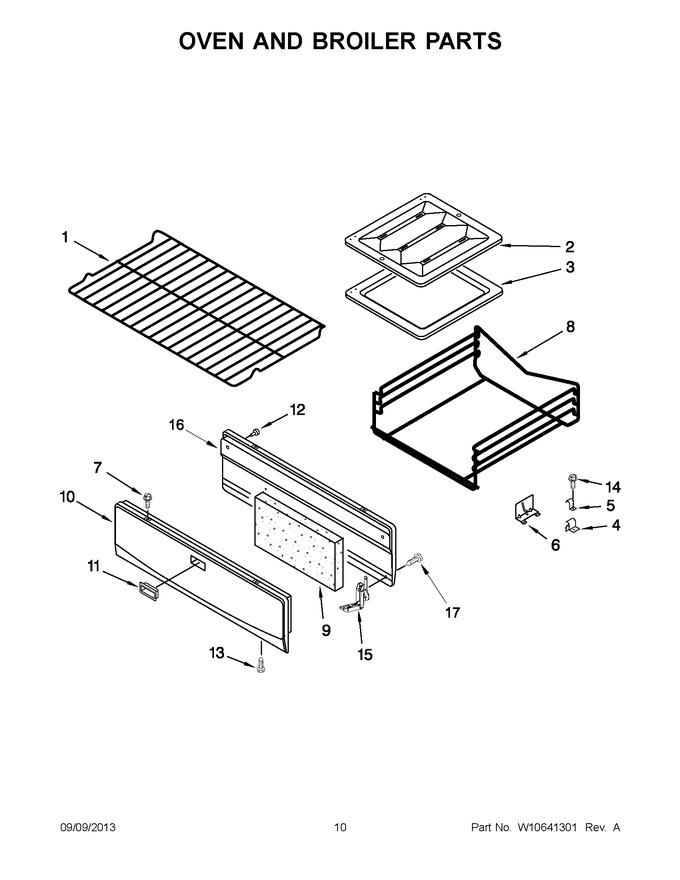

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10312013		Rack, Oven				$ 52.65
2	WP98003480		Grill, Broiler   (Replaces: 98003480)				$ 89.69
3	WP98016005		Pan, Broiler   (Replaces: 98016005)				$ 77.97
4	98004715		Guide, Rack		Appelez-nous	-
5	98008341		Cover, Guide		Appelez-nous	-
6	98004761		Bracket, Rack		Appelez-nous	-
7	3196166		Screw (white)   (Replaces: 98006727)				$ 6.31
8	98016570		Rack, Broiler		Appelez-nous	-
9	W10137230		Insulation, Broiler Door		Appelez-nous	-
10	98009342		Panel, Drawer Front (white)		Appelez-nous	-
11	WP3405184		Handle, Broiler Drawer (white)   (Replaces: 98008486)				$ 68.41
12	98004052		Bumper, Door		Appelez-nous	-
13	WP3400805		Screw   (Replaces: 98004219)				$ 6.47
14	W10837731		Screw   (Replaces: 98006633)				$ 7.07
15	W10201341		Hinge, Broiler Door		Appelez-nous	-
16	W10162115		Liner, Broiler Door		Appelez-nous	-
17	W10155121		Screw		Appelez-nous	-
