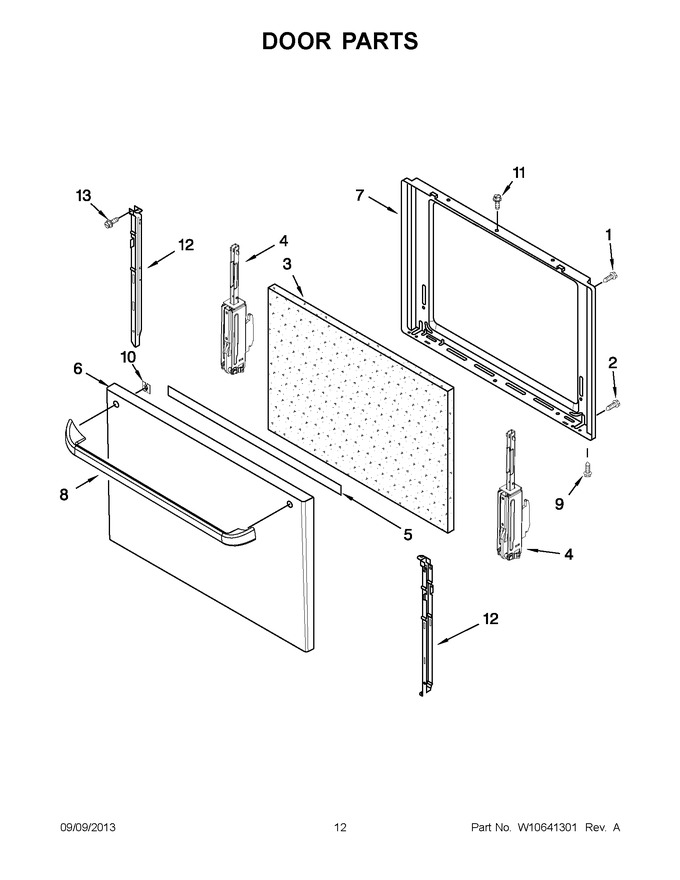

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8533842		Screw   (Replaces: 8533842)				$ 6.26
2	W11206744		Screw   (Replaces: 98008699)				$ 12.20
3	W10137223		Insulation, Oven Door		Appelez-nous	-
4	98017875		Hinge, Oven Door (white)				$ 31.85
4	98017873		Hinge, Oven Door (yellow)				$ 34.24
5	W10544222		Retainer, Insulation Upper		Appelez-nous	-
6	WP98017968W		Panel, Door   (Replaces: 98017968W)				$ 201.88
7	98017966		Liner, Door		Appelez-nous	-
8	WP98017915W		Handle, Oven Door   (Replaces: 98017915W)				$ 174.96
9	WP59002061		Screw   (Replaces: 98004993)				$ 6.98
10	98017967		Bracket, Handle		Appelez-nous	-
11	WP98008545		Screw, Trim   (Replaces: 98008545)				$ 15.94
12	98004629		Retainer (left Hand)		Appelez-nous	-
12	98004564		Retainer (right Hand)		Appelez-nous	-
13	WP3400805		Screw   (Replaces: 98004219)				$ 6.47
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	98012220		Kit, Door Pin				$ 8.91
