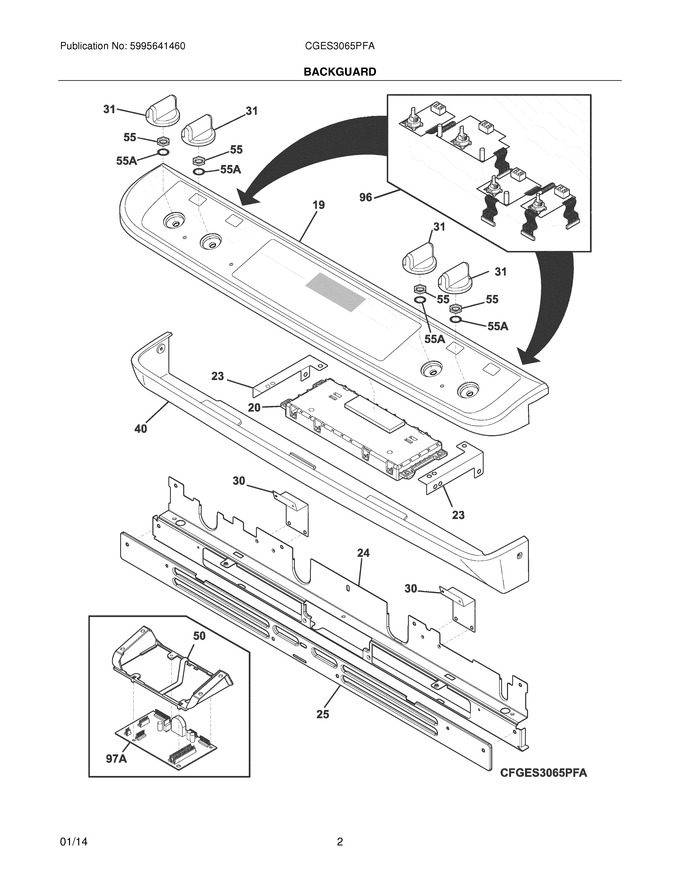

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	318921300		Bracket,control Mtg ,(2)				$ 17.64
24	139074901		Frame,vent Trim ,black		Appelez-nous	-
25	139075001		Cover,vent Trim ,black				$ 60.52
30	318928502		Bracket,control Panel ,rear ,(2)   (Replaces: 318928500)				$ 15.60
31	316564406		Knob,control ,stainless				$ 155.22
40	318912905		Panel,service ,black				$ 301.40
50	318917700		Chassis,uib Mounting				$ 91.46
55	316247700		Nut,mounting				$ 18.20
55A	316247800		Washer,lock ,mtg				$ 18.20
F19	139059402		Panel Assembly,control ,black/stainless				$ 437.12
F20	5304503758		Controller,electronic ,es530w6   (Replaces: 316560174)			Immediately	$ 360.23
F96	318411400		Control Assembly,complete ,rotary ,w/4 Controls				$ 426.98
F97A	316442080		Board,power ,uib				$ 212.16
FNI	807633202		Harness,wiring ,display		Appelez-nous	-
FNI	318402398		Harness,wiring ,interface				$ 22.58
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
