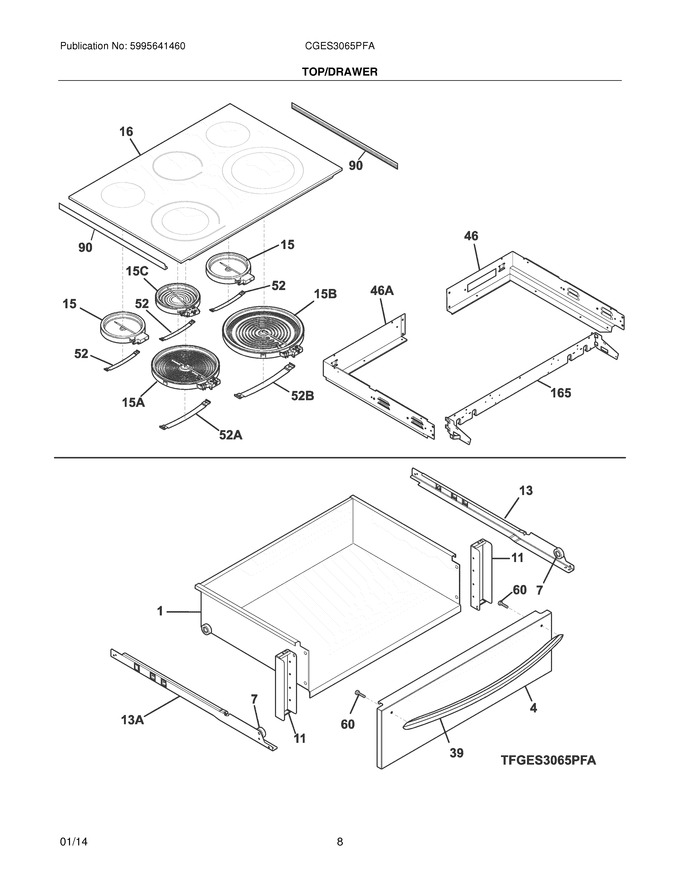

07 - Top/drawer


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298829		Panel,drawer ,stainless ,front   (Replaces: 318298826)				$ 210.92
7	318332200		Roller,nylon		Appelez-nous	-
11	318298600		Bracket,drawer Support ,(2)				$ 62.69
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	139033802		Smoothtop Assembly,glass ,black				$ 298.57
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
46	318568200		Box,burner ,rh				$ 23.99
52	318122006		Spring,element Mtg ,small				$ 66.25
60	5303288572		Screw-handle Mtg		Appelez-nous	-
90	318368001		Channel,glass Protector ,(2)				$ 22.98
165	318913300		Deflector,box ,front				$ 48.67
13A	318018101		Channel-drawer,lh				$ 63.11
46A	318568201		Box,burner ,lh				$ 28.93
52A	318122010		Spring,element Mtg ,3000w				$ 62.51
52B	318122011		Spring,element Mtg ,1200w/1800w				$ 62.14
F15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant			Immediately	$ 122.86
F15A	5304533520		Element,dual ,9``/6`` ,surface ,3000w ,quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
F15B	316282101		Element,dual ,12``/9`` ,surface ,1200/2000w,radiant   (Replaces: 316282102)			Immediately	$ 283.03
F15C	140273621015		Element,surface ,warmer ,100 W   (Replaces: 316289800)			Immediately	$ 35.77
FNI	807723701		Harness,wiring ,surface Element		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318531701		Spacer,(2)				$ 12.05
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	318591200		Washer,handle ,drawer		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
