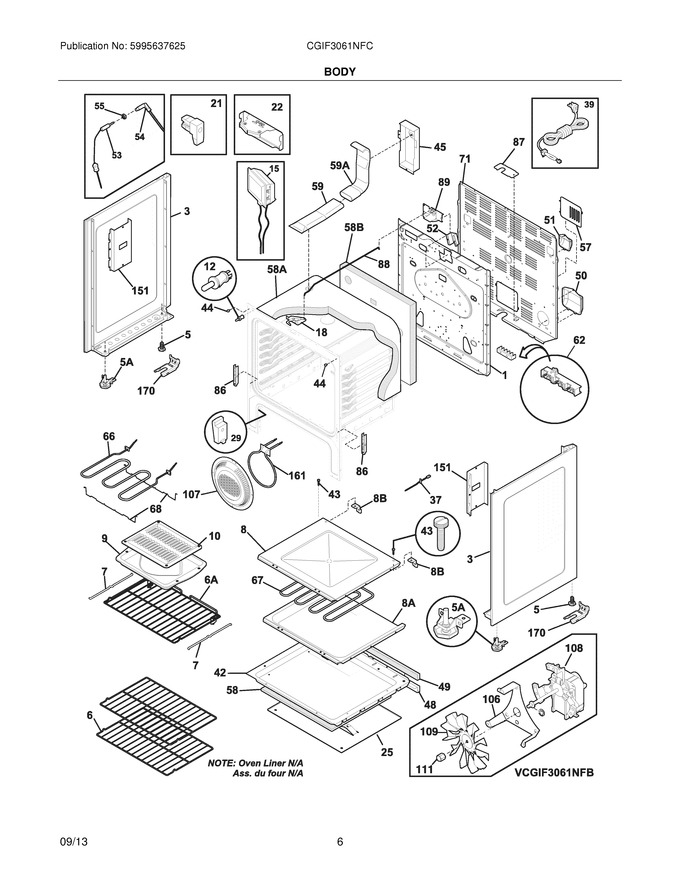

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Induction
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316502006 | Back,main |
|
- | |||||
| 3 | 316400145 | Panel,bodyside ,black ,lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 3 | 316400144 | Panel,bodyside ,black ,rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 5 | 316272900 | Screw,leveling ,plastic ,rear ,(2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316496201 | Rack,oven |
|
Immediately | $ 103.48 | ||||
| 7 | 316546300 | Link,coupler ,(2) ,auto Rack |
|
Immediately | $ 22.75 | ||||
| 8 | 316400601 | Panel,oven Bottom |
|
$ 125.87 | |||||
| 9 | 316081900 | Pan,broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert,broiler Panoptional Access0ry |
|
$ 68.85 | |||||
| 12 | 316445500 | Switch,oven Light ,door Frame |
|
Immediately | $ 54.74 | ||||
| 21 | 316408000 | Clip,bodyside |
|
$ 18.20 | |||||
| 22 | 316286300 | Bracket-bodyside,(2) |
|
$ 17.72 | |||||
| 25 | 316406200 | Shield,heat ,lower |
|
$ 87.97 | |||||
| 29 | 807047102 | Glide,drawer ,front (Replaces: 316407301) |
|
Immediately | $ 23.82 | ||||
| 42 | 316407700 | Shield,wool ,lower |
|
$ 131.19 | |||||
| 43 | 316282700 | Screw,w/washer ,8-18 |
|
$ 9.93 | |||||
| 44 | 316517600 | Spacer,oven Door |
|
$ 12.05 | |||||
| 45 | 316234100 | Shield,wire ,vent Tube |
|
$ 70.16 | |||||
| 48 | 316301600 | Shield,lower |
|
- | |||||
| 49 | 316301700 | Insulation,lower Shield |
|
- | |||||
| 50 | 316302600 | Cover,air Inlet |
|
$ 33.18 | |||||
| 51 | 316302700 | Cover,air Outlet |
|
- | |||||
| 52 | 316302000 | Bracket,wiring ,crosover ,induction |
|
- | |||||
| 57 | 316457801 | Cover,access |
|
$ 12.89 | |||||
| 58 | 316403802 | Insulation,oven Sump |
|
$ 110.57 | |||||
| 59 | 316208401 | Vent Tube,assembly ,w/catalyst |
|
$ 194.14 | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 68 | 316429100 | Support,element ,broil |
|
$ 62.51 | |||||
| 71 | 316302503 | Sheild,rear Wall |
|
- | |||||
| 86 | 316441300 | Receptacle,hinge |
|
$ 21.97 | |||||
| 87 | 316081202 | Bracket,cable Mtg |
|
$ 4.96 | |||||
| 88 | 316203500 | Rod,auto Latch |
|
$ 72.30 | |||||
| 106 | 316404100 | Bracket,motor Mtg. |
|
$ 63.70 | |||||
| 107 | 316026701 | Cover,fan |
|
$ 408.89 | |||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 151 | 316404601 | Shield,bodyside |
|
$ 21.27 | |||||
| 170 | 316112005 | Anti Tip Kit,assembly |
|
Immediately | $ 18.91 | ||||
| 53B | 316247700 | Nut,mounting |
|
$ 18.20 | |||||
| 58A | 316406602 | Insulation,oven Wrapper |
|
$ 121.19 | |||||
| 58B | 316301501 | Insualtion,oven Back |
|
$ 201.81 | |||||
| 59A | 316208304 | Tube,oven Vent ,upper |
|
$ 80.09 | |||||
| 5A | 5304509869 | Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg (Replaces: 316498900) |
|
Immediately | $ 15.08 | ||||
| 6A | 316577800 | Rack,oven ,auto (Replaces: 316556500) |
|
$ 243.43 | |||||
| 8A | 316411106 | Base,bake Element |
|
$ 122.69 | |||||
| 8B | 316506000 | Bracket,support ,oven Bottom ,(2) |
|
$ 4.55 | |||||
| F108 | 316256100 | Motor-fan |
|
Immediately | $ 211.18 | ||||
| F15 | 5304523863 | Lamp,oven ,(2) ,halogen (Replaces: 316510700) |
|
Immediately | $ 69.01 | ||||
| F161 | 316211603 | Element,convection Fan ,350 W |
|
$ 255.86 | |||||
| F170 | 316116000 | Screw,concrete ,1.75`` ,anti-tip Brkt |
|
$ 12.89 | |||||
| F170 | 316112005 | Bracket,anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| F170 | 316541700 | Template,anti-tip |
|
- | |||||
| F18 | 316405800 | Latch Assembly,oven Door |
|
Immediately | $ 56.74 | ||||
| F37 | 316490000 | Probe,oven Temp |
|
Immediately | $ 58.30 | ||||
| F39 | 318113111 | Cord,electric |
|
$ 95.55 | |||||
| F53 | 5304504202 | Probe,meat Temp ,red (Replaces: 318601303) |
|
Immediately | $ 106.19 | ||||
| F53A | 316536900 | Receptacle,probe |
|
$ 163.30 | |||||
| F53B | 316534100 | Washer,flat ,meat Probe |
|
$ 14.89 | |||||
| F66 | 316430900 | Element,broil ,4000w |
|
Immediately | $ 256.20 | ||||
| F67 | 316307600 | Element,bake ,hidden |
|
$ 181.25 | |||||
| F89 | 5304528973 | Motor-latch (Replaces: 316464300) |
|
Immediately | $ 52.34 | ||||
| FNI | 316590239 | Harness,wiring ,main |
|
- | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316279600 | Screw,bracket ,stiffener ,(4) |
|
$ 12.05 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5303285179 | Screw,wafer Head `8-32t X 0.500 ,black |
|
$ 13.46 | |||||
| NI | 316418900 | Screw,sims Lp ,no.8-32 X 5/16`` ,black |
|
$ 14.18 | |||||
| NI | 5303289910 | Screw,truss Sqdr ,8a X 1`` |
|
$ 5.67 | |||||
| NI | 316205500 | Nut,hex Flange ,3/8 10-32 |
|
$ 11.34 | |||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.03 |
