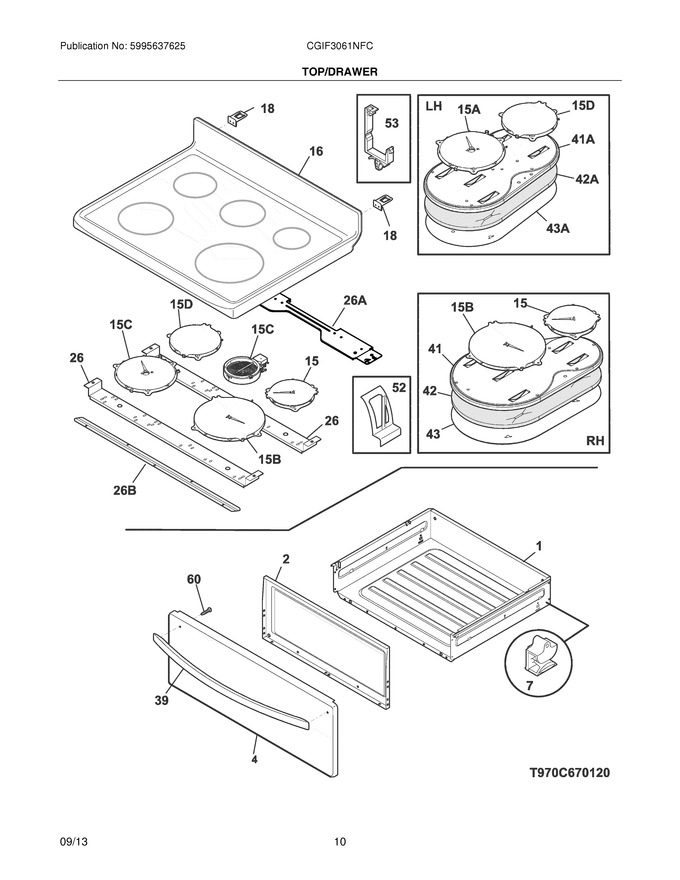

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer,utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527989 | Liner,drawer (Replaces: 316403300) |
|
$ 28.83 | |||||
| 4 | 5304512039 | Panel,drawer Front ,stainless (Replaces: 316409421) |
|
$ 135.50 | |||||
| 7 | 316407402 | Glide,drawer ,rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 16 | 316282980 | Maintop Assembly,glass/smoothtop ,black |
|
$ 554.99 | |||||
| 18 | 316580800 | Bracket-hinge,main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 316427604 | Channel,element Support ,(2) |
|
- | |||||
| 39 | 316554010 | Handle,door/drawer ,stainless (Replaces: 316554005) |
|
Immediately | $ 168.44 | ||||
| 41 | 316306401 | Panel,mounting ,induction ,rh |
|
$ 155.93 | |||||
| 42 | 316306800 | Insulation,rh |
|
$ 88.60 | |||||
| 43 | 316306601 | Shield,heat ,rh |
|
$ 63.79 | |||||
| 52 | 316461700 | Clip,element Mtg |
|
$ 12.05 | |||||
| 53 | 316301200 | Clip,wiring ,natural ,(2) ,induction |
|
- | |||||
| 60 | 5303288572 | Screw-handle Mtg |
|
- | |||||
| 15No. | 316305900 | Element,induction Coil ,140mm ,lh Rear |
|
$ 227.51 | |||||
| 26A | 316498200 | Bracket-support,chassis ,aluminum |
|
$ 52.33 | |||||
| 26B | 316214202 | Bracket,chassis Support ,front |
|
$ 25.41 | |||||
| 41A | 316306501 | Panel,mounting ,induction ,lh |
|
- | |||||
| 42A | 316306900 | Insulation,lh |
|
$ 94.55 | |||||
| 43A | 316306701 | Shield,heat ,lh |
|
$ 73.00 | |||||
| F15A | 316305800 | Element,induction Coil ,180mm ,lh Front |
|
$ 277.57 | |||||
| F15B | 316305600 | Element,induction Coil ,260mm ,rh Front |
|
$ 331.93 | |||||
| F15C | 316307501 | Element,warmer Zone ,120mm |
|
$ 172.22 | |||||
| F15D | 316306000 | Element,induction Coil ,120mm ,rh Rear |
|
$ 238.89 | |||||
| NI | 5303285179 | Screw,wafer Head `8-32t X 0.500 ,black |
|
$ 13.46 | |||||
| NI | 5308014215 | Screw`6-20 X 0.312 |
|
$ 2.28 | |||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316468100 | Cleaner,smoothtop ,w/sponge |
|
$ 4.88 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021132 | Screw,8-18 X 11/16 ,black ,(3) |
|
$ 12.89 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316418900 | Screw,sims Lp ,no.8-32 X 5/16`` ,black |
|
$ 14.18 |
