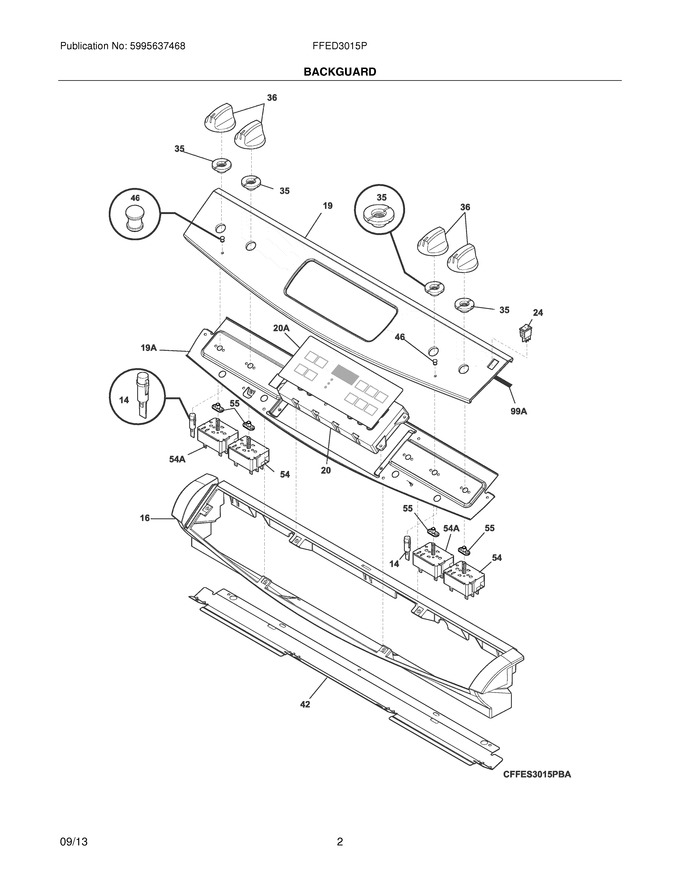

03 - Backguard


05 - Body


07 - Main Top


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299100		Console,assy. ,white				$ 418.11
19	318235192		Panel,control ,white				$ 227.90
35	318183106		Support,glass ,white ,(4)				$ 10.61
36	316543809		Knob,control ,white				$ 44.14
42	318574701		Support,control Panel ,black				$ 62.69
46	318228301		Lens,indicator Light				$ 11.29
55	318402901		Bushing,switch				$ 17.72
19A	9910999SI		Panel,control Mtg.   (Replaces: 318224401)		Appelez-nous	-
20A	316419137		Overlay,clock ,white ,es300			Immediately	$ 31.34
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318293901		Light,indicator ,125v ,(2)				$ 53.66
F20	316557139		Clock/timer,electronic ,es300				$ 216.67
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	318293830		Switch,surface Element ,small ,(2)			Immediately	$ 94.36
F54A	318293831		Switch,surface Element ,large			Immediately	$ 92.69
FNI	807632802		Harness,wiring ,oven Control		Appelez-nous	-
FNI	139812601		Harness,wiring ,surface Control		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304447071		Clip,console ,(2)		Appelez-nous	-
