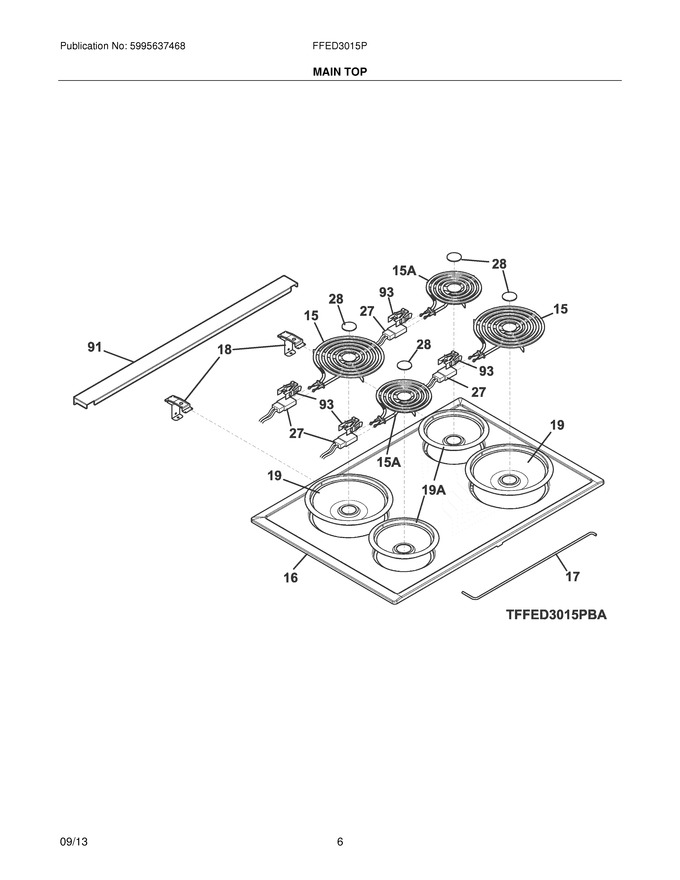

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318225607		Main Top,white				$ 247.17
17	3051554		Rod,support ,main Top Panel		Appelez-nous	-
18	318227710		Hinge,maintop ,(2)		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
91	318304301		Trim,filler ,white ,rear				$ 72.66
93	318366410		Support,terminal Block ,(4)				$ 13.47
F15	316442301		Element,surface ,8``/large ,2100w			Immediately	$ 44.39
F15A	318372211		Element-surface,small/6 Inch ,1500w   (Replaces: 316439801)			Immediately	$ 45.14
F19	316048413		Pan-surface Element,chrome ,large/8 Inch			Immediately	$ 9.85
F19A	316048414		Pan-surface Element,chrome ,small/6 Inch			Immediately	$ 16.11
F27	807198301		Harness Assembly,complete ,top Elements		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303325170		Nut,keps ,8-32 ,(2)		Appelez-nous	-
