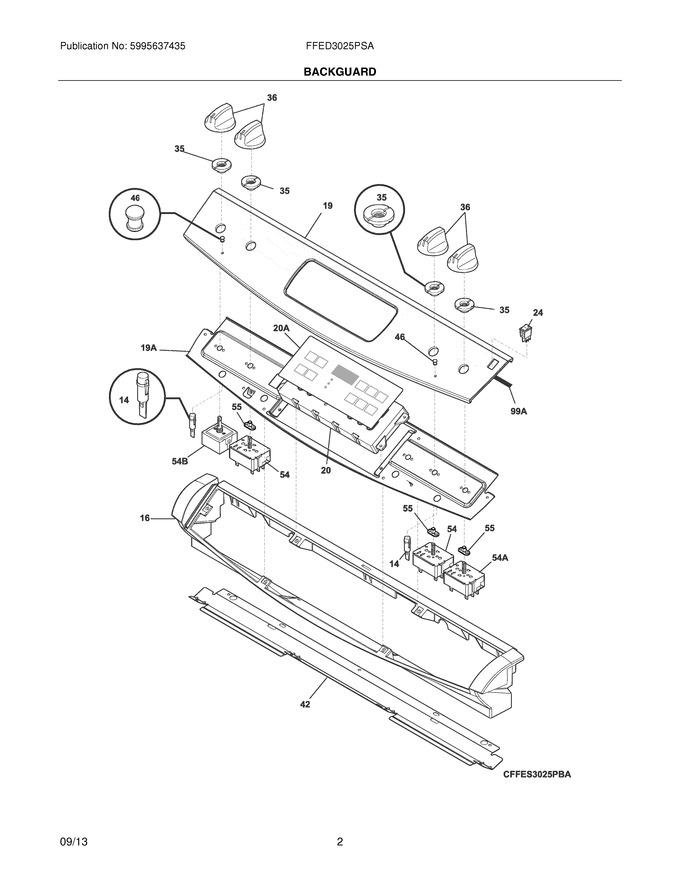

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console,assy. ,black				$ 494.96
19	139038827		Control Panel Assembly,steel/glass ,stainless/black				$ 291.71
35	318183105		Support,glass ,black ,(4)				$ 21.37
36	316543810		Knob,control ,black				$ 46.79
42	318574701		Support,control Panel ,black				$ 62.69
46	318228301		Lens,indicator Light				$ 11.29
55	318402901		Bushing,switch				$ 17.72
19A	9910999SI		Panel,control Mtg.   (Replaces: 318224401)		Appelez-nous	-
20A	316419141		Overlay,clock ,black ,es300			Immediately	$ 56.87
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318293901		Light,indicator ,125v ,(2)				$ 53.66
F20	316557139		Clock/timer,electronic ,es300				$ 216.67
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	318293830		Switch,surface Element ,small ,(2)			Immediately	$ 94.36
F54A	318293831		Switch,surface Element ,large			Immediately	$ 92.69
F54B	318191023		Switch,infinite ,dual			Immediately	$ 70.64
F54B	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
FNI	807632802		Harness,wiring ,oven Control		Appelez-nous	-
FNI	808609301		Harness,wiring ,surface Control		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03

    View Diagram in Separate Window       Print Part List
