SELECT A DIAGRAM

01 - Cover


03 - Backguard

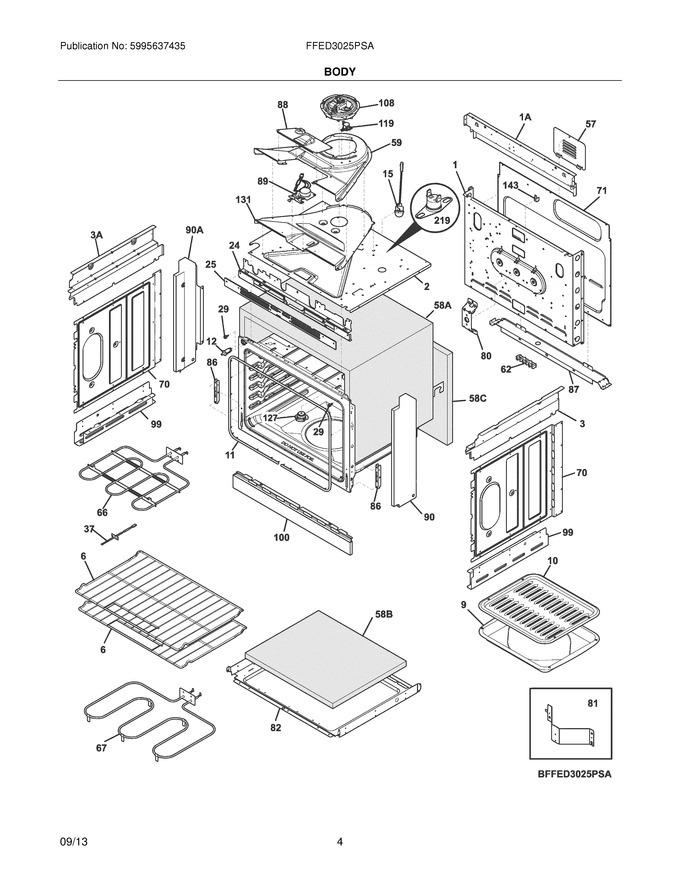

05 - Body


07 - Main Top


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017302		Panel,main Back		Appelez-nous	-
2	139028100		Shield,insulation ,top		Appelez-nous	-
3	318225230		Panel,bodyside ,upper Rh		Appelez-nous	-
6	139011800		Rack,oven ,w/handle				$ 128.00
9	318138801		Pan,broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert,broiler Panoptional Access0ry		Appelez-nous	-
11	807545502		Seal,oven Door ,gray				$ 140.34
24	139074901		Frame,vent Trim ,black		Appelez-nous	-
25	139075001		Cover,vent Trim ,black				$ 60.52
29	316517600		Spacer,oven Door				$ 12.05
57	316283600		Cover,access				$ 12.50
59	139027600		Duct,cooling Fan ,upper				$ 85.76
62	5303935061		Terminal Block Kit		Appelez-nous	-
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 72.05
71	139014000		Shield,rear Wall ,lower		Appelez-nous	-
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 14.89
81	318054701		Plate,anti-tip				$ 18.43
82	139008200		Shield,insulation ,lower		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	139020100		Bracket,cable Mtg.		Appelez-nous	-
88	5304506964		Cover,latch Motor   (Replaces: 139027900)				$ 24.10
90	318296924		Panel,filler ,black ,rh		Appelez-nous	-
99	139086700		Strut,bottom Support ,(2)		Appelez-nous	-
100	318330003		Trim,door Opening ,black ,bottom		Appelez-nous	-
127	5304538693		Tube Assembly,vent ,w/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct,cooling Fan ,lower				$ 73.00
143	318172904		Support,wire		Appelez-nous	-
1A	139004600		Panel,main Back ,upper				$ 67.62
3A	318225231		Panel,bodyside ,upper Lh		Appelez-nous	-
58A	139001700		Insulation,oven Wrapper ,top & Sides		Appelez-nous	-
58B	139020302		Insulation,oven Bottom		Appelez-nous	-
58C	139020201		Insulation,oven Back		Appelez-nous	-
90A	318296925		Panel,filler ,black ,lh		Appelez-nous	-
F108	318575612		Motor,cooling Fan			Immediately	$ 196.61
F119	807144901		Thermostat,cooling Fan ,110 Deg.				$ 58.39
F12	316445501		Switch,oven Light ,door Frame				$ 90.01
F15	5304528790		Lamp Assembly,round ,halogen ,25w   (Replaces: 139009000)			Immediately	$ 20.56
F219	318005229		Switch,thermal Cutout			Immediately	$ 50.04
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	5304521498		Element,broil ,6 Pass ,3400w   (Replaces: 139008900)			Immediately	$ 87.21
F67	139027501		Element,bake ,6 Pass ,2750w				$ 178.61
F89	5304528836		Motor,latch Assembly   (Replaces: 139078300)			Immediately	$ 76.34
FNI	808182601		Harness,wiring ,main				$ 220.56
FNI	318394445		Box & Wires Assy		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303289910		Screw,truss Sqdr ,8a X 1``				$ 5.67
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	318579001		Bracket,wire				$ 11.08
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18

    View Diagram in Separate Window       Print Part List
