SELECT A DIAGRAM

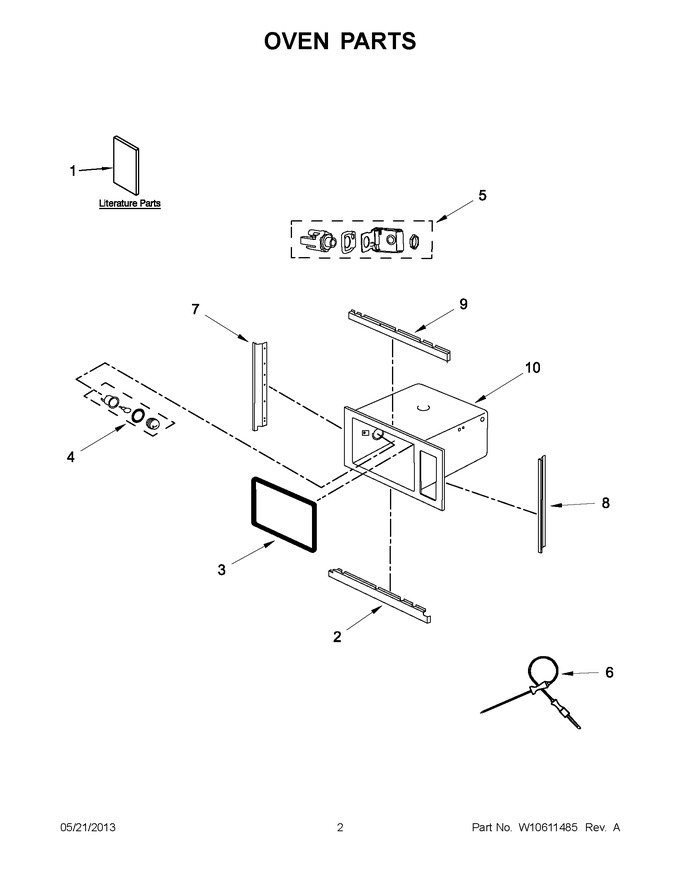

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door
04 - Internal Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10419852 | Use And Care Guide |
|
- | |||||
| 1 | W10419853 | Installation Instructions |
|
- | |||||
| 1 | W10419854 | Tech Sheet |
|
- | |||||
| 2 | W10586361 | Trim, Lower |
|
$ 162.52 | |||||
| 3 | W10591215 | Gasket, Door Kit (Replaces: W10588966) |
|
$ 110.40 | |||||
| 4 | W10587792 | Assembly, Bulb |
|
$ 298.48 | |||||
| 5 | W10587802 | Jack, Food Probe |
|
$ 253.34 | |||||
| 6 | W10577826 | Probe, Food |
|
$ 145.92 | |||||
| 7 | W10586336 | Trim, Left Side |
|
$ 130.36 | |||||
| 8 | W10586352 | Trim, Right Side |
|
$ 131.14 | |||||
| 9 | W10586389 | Vent, Oven |
|
- | |||||
| 10 | N/P | Liner, Oven (not Serviceable) |
|
- |
