SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door

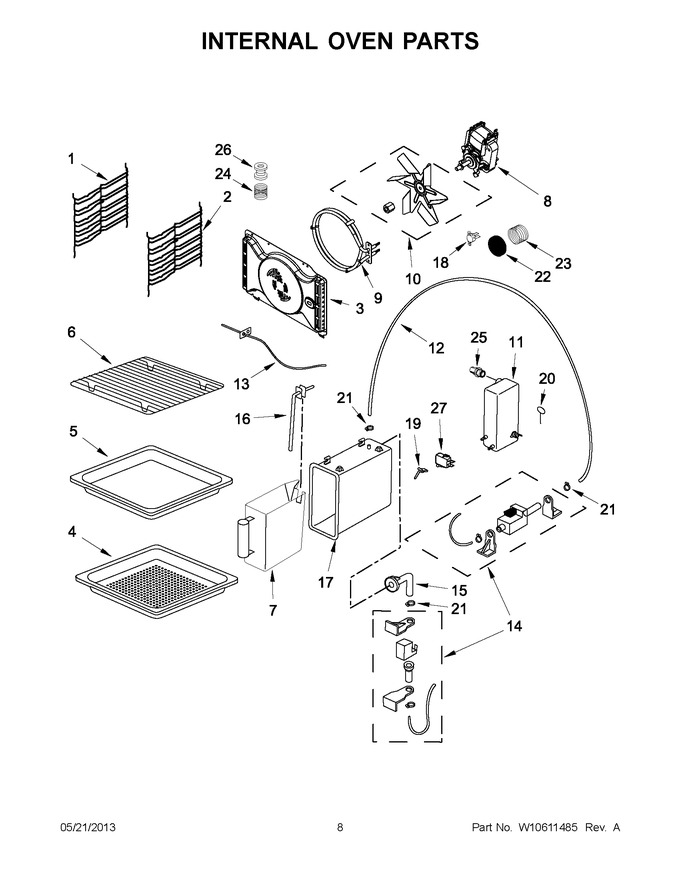

04 - Internal Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10586511		Grid, Rack Left Side				$ 223.92
2	W10586521		Grid, Rack Right Side		Appelez-nous	-
3	W10586466		Baffle, Convection Fan				$ 249.89
4	W10577816		Tray, Steam				$ 311.90
5	W10577820		Tray, Bake/drip				$ 303.35
6	W10577824		Rack, Wire Shelf				$ 285.88
7	W10577835		Reservoir, Water Container				$ 167.09
8	W11534564		Motor, Convection   (Replaces: W10330571)			Immediately	$ 90.60
9	W10590936		Element, Convection With Adhesive				$ 131.21
10	W10586917		Blade, Convection Fan Includes Nut				$ 41.30
11	WPW10587532		Boiler, Unit Contains Boiler Element And Sensor   (Replaces: W10587532)				$ 708.93
12	W11366439		Tubing, Silicon   (Replaces: W10587812)				$ 18.86
13	W10587793		Sensor, Cavity Temperature				$ 226.37
14	W10586915		Pump, Fill And Drain			Immediately	$ 324.67
15	W10586491		Tubing, Connection Boiler				$ 96.53
16	W10587540		Pipe, Water Container Fill				$ 24.20
17	W10586494		Housing, Water Container				$ 171.64
18	W10587538		Limiter, Temperature				$ 116.69
19	W10586492		Sensor, Boiler Temperature				$ 59.81
20	W10587533		Sensor, Water Level				$ 35.39
21	W10587851		Clamp, Tubing		Appelez-nous	-
22	W10588571		Gasket, Convection Motor		Appelez-nous	-
23	W10587877		Spring, Convection Motor		Appelez-nous	-
24	W10587880		Spring, Air Flow		Appelez-nous	-
25	W10588572		Gasket, Steam Outlet				$ 84.75
26	W10587885		Gasket, Air Flow		Appelez-nous	-
27	W10587790		Switch, Micro				$ 28.00
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10587541		Harness, Wire Main		Appelez-nous	-
NI	W10577833		Sponge				$ 209.67
NI	W10591611		Screw, Torx -15 T-15 3.4mm				$ 12.88

    View Diagram in Separate Window       Print Part List
