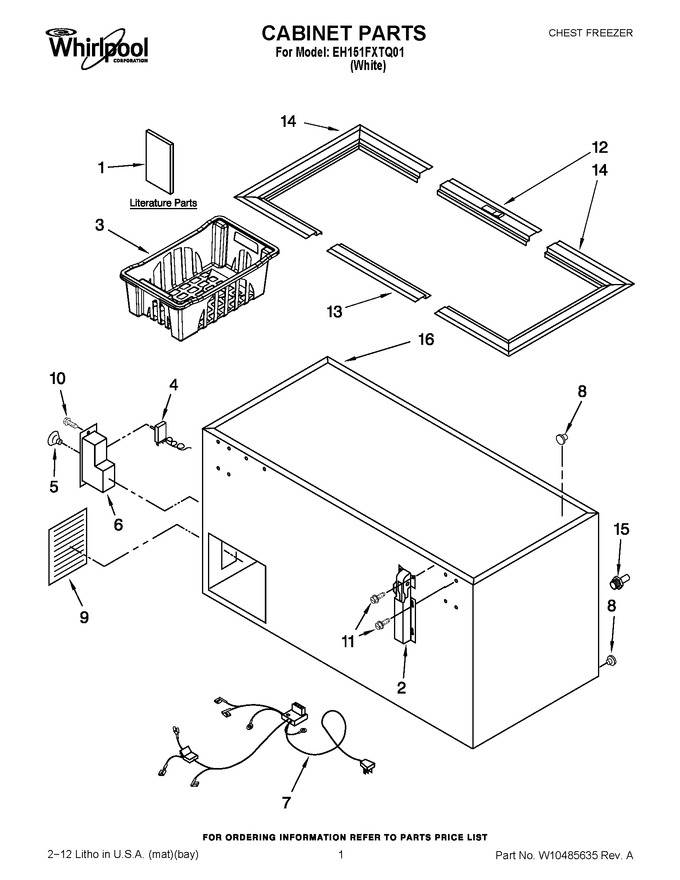

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326817		Energy Guide/tag		Appelez-nous	-
1	W10326796		Owners Manual		Appelez-nous	-
2	W11192197		Hinge, Assembly   (Replaces: 4-34582-008)				$ 167.57
3	W11553315		Basket   (Replaces: 4-36033-002)				$ 88.53
4	WP4-35940-001		Thermostat   (Replaces: 4-35940-001)				$ 148.16
5	4-35101-002		Knob, Thermostat		Appelez-nous	-
6	W10682894		Control Box   (Replaces: 4-35976-003)		Appelez-nous	-
7	4-35130-004		Harness, Wiring				$ 209.65
8	3-33211-001		Drain, Plug				$ 10.63
9	4-35099-001		Access Panel		Appelez-nous	-
10	3-24004-049		Screw		Appelez-nous	-
11	WPW10031790		Screw   (Replaces: 3-24004-005)			Immediately	$ 7.87
12	4-35011-004		Front, Breaker Strip				$ 75.80
13	4-35010-004		Rear, Breaker Strip		Appelez-nous	-
14	W11045300		End, Breaker Strip (2)   (Replaces: 4-35009-003)				$ 80.74
15	W11663505		Adapter, Drain   (Replaces: 1-33178)				$ 15.45
16	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
