SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts

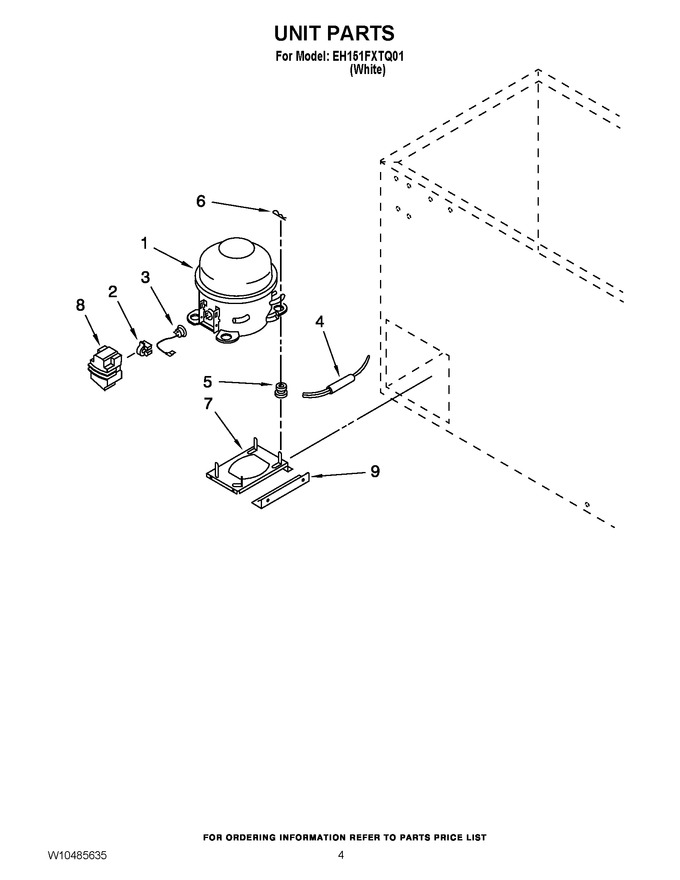

03 - Unit Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10309989 | Compressor (includes Items 2, 3, 4, 5, 6 & 8) (Replaces: 4-32972-141) |
|
Immediately | $ 591.26 | ||||
| 2 | WPW10189190 | Relay (Replaces: 2-35154-010) |
|
Immediately | $ 118.16 | ||||
| 3 | 2-34286-039 | Overload |
|
$ 155.37 | |||||
| 4 | W10843121 | Drier (Replaces: W10459086) |
|
Immediately | $ 47.31 | ||||
| 5 | WP2163786 | Compressor, Mounting Grommet (Replaces: 13146462) |
|
$ 7.16 | |||||
| 6 | A201435 | Compressor, Hitch Pin |
|
- | |||||
| 7 | 4-35083-001 | Compressor Base |
|
- | |||||
| 8 | W10393770 | Cover (Replaces: 3-35171-003) |
|
$ 98.67 | |||||
| 9 | 3-81556-001 | Brace |
|
- | |||||
| NI | N/P | Refrigerant Charge (4.8 Oz. (r-134a)) |
|
- |
