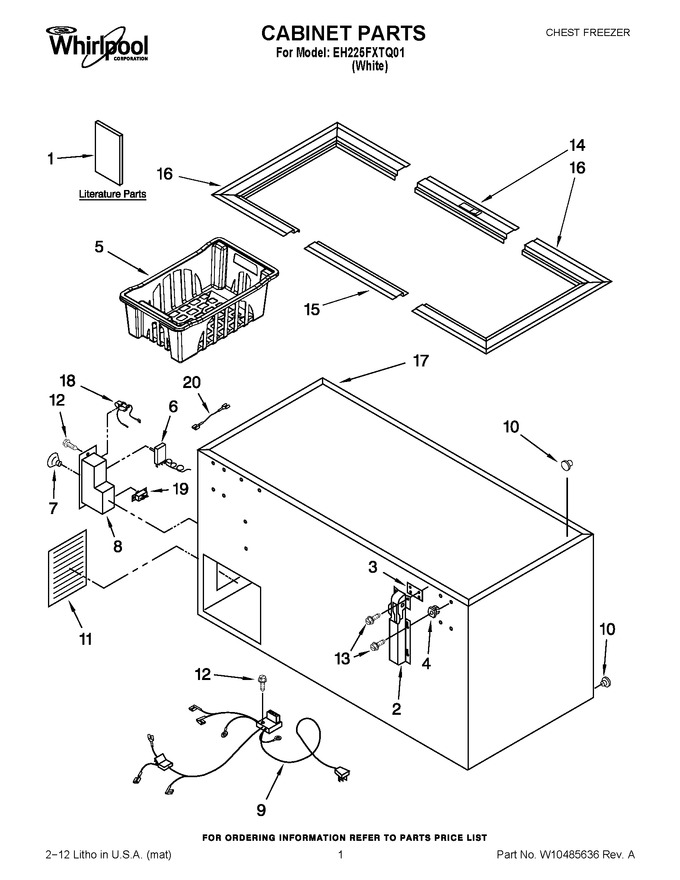

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326796		Owners Manual		Appelez-nous	-
1	W10326819		Energy Guide		Appelez-nous	-
2	W11192185		Hinge, Assembly   (Replaces: 4-34582-002)				$ 164.89
3	1-17548-006		Spacer, Hinge				$ 18.64
4	3-23995-014		Plastic, Grommet		Appelez-nous	-
5	W11553315		Basket (upper (2))   (Replaces: 4-36033-002)				$ 88.53
6	4-35940-004		Thermostat				$ 228.09
7	4-35101-002		Knob, Thermostat		Appelez-nous	-
8	4-35976-001		Control Box				$ 34.65
9	4-35521-002		Harness, Wiring				$ 160.17
10	3-33211-001		Plug, Drain				$ 10.63
11	4-35099-001		Access Panel		Appelez-nous	-
12	3-24004-049		Screw		Appelez-nous	-
13	WPW10031790		Screw   (Replaces: 3-24004-005)			Immediately	$ 7.87
14	4-35011-005		Front, Breaker Strip		Appelez-nous	-
15	W11045298		Rear, Breaker Strip   (Replaces: 4-35010-005)		Appelez-nous	-
16	W11045300		End, Breaker Strip (2)   (Replaces: 4-35009-003)				$ 80.74
17	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
18	2-32304		Alarm (buzzer)				$ 26.61
19	2-32307		Switch, Alarm				$ 76.86
20	3-30389-079		Wire, Lead		Appelez-nous	-
