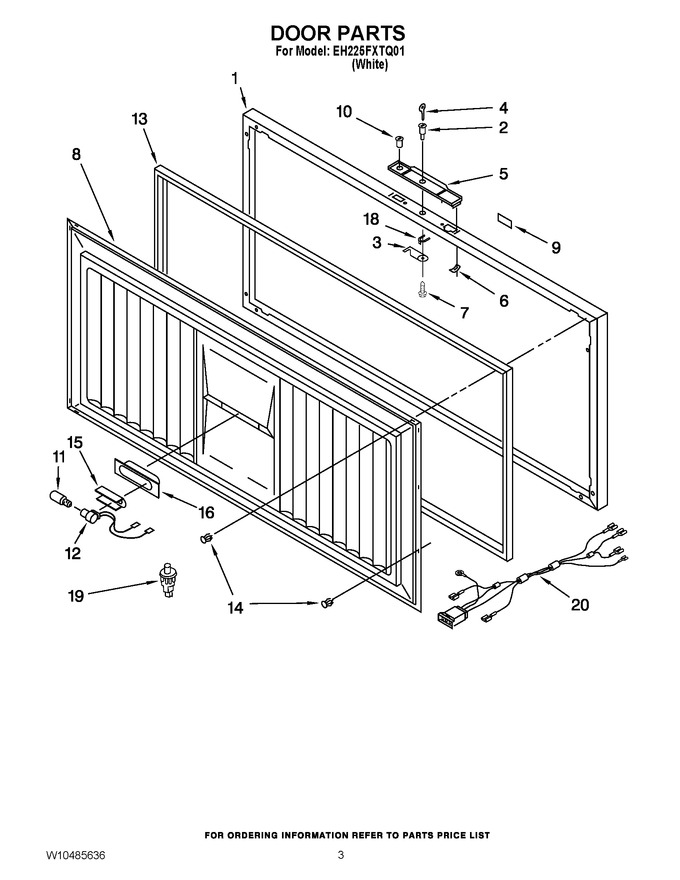

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-35652-404		Exterior Door Panel (includes Insulation)		Appelez-nous	-
2	3-35284-001		Lock (includes No.3)				$ 24.42
3	2-35195-006		Hook Bolt, Lock				$ 23.46
4	WP1-26355		Key   (Replaces: 1-26355)				$ 9.76
5	4-35663-149		Handle				$ 43.72
6	3-24059-024		Clip, Oblong				$ 12.11
7	3-24004-013		Screw		Appelez-nous	-
8	4-25770-014		Interior Door Panel				$ 147.24
9	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 79.87
10	3-75560-003		Light, Indicator				$ 105.09
11	W10873798		Bulb, Light   (Replaces: 1-24397-001)			Immediately	$ 12.53
12	3-35862-001		Socket, Light		Appelez-nous	-
13	4-35260-006		Gasket			Immediately	$ 291.90
14	90013-003		Gasket, Clip		Appelez-nous	-
15	2-30045-001		Shield, Heat				$ 11.39
16	3-25693-001		Reflector, Light				$ 15.36
18	1-26359		Clip, Spring				$ 71.75
19	W10917237		Switch, Light   (Replaces: 3-35645-001)				$ 39.14
20	W10620417		Harness, Wiring (lid)   (Replaces: 4-35641-002)				$ 120.34
