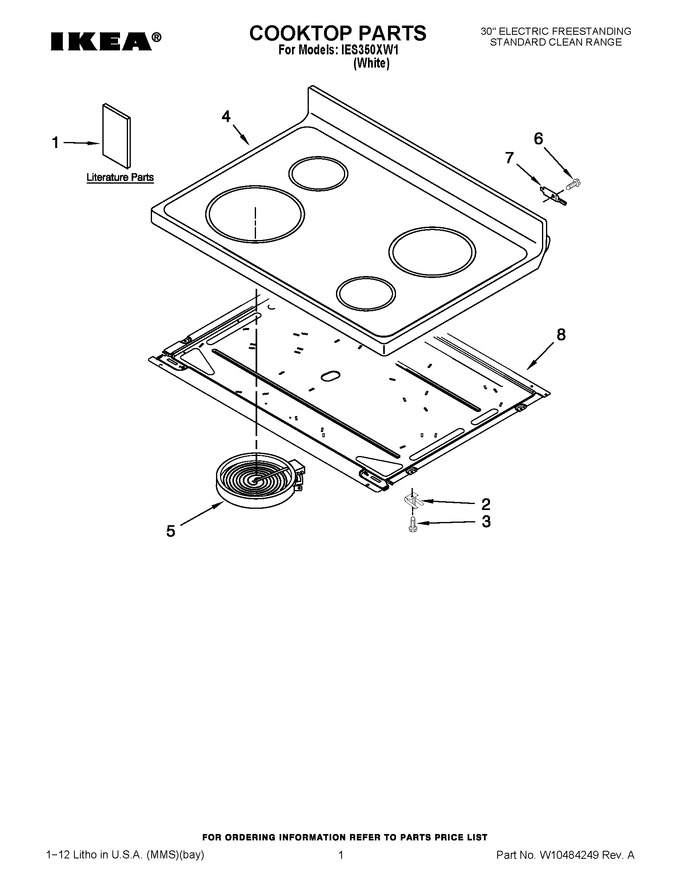

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403811 | Instructions Installations |
|
- | |||||
| 1 | W10419386 | Template, Anti-tip (owners Manual) |
|
- | |||||
| 1 | W10384447 | Template, Anti-tip (tech Sheet) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 4 | W10248202 | Cooktop (Replaces: W10202165) |
|
$ 517.51 | |||||
| 5 | WPW10242957 | Element, Surface (lf/rr - 2000 W) (Replaces: W10242957) |
|
$ 298.80 | |||||
| 5 | WP8523045 | Element, Surface (lr/rf - 1500 W) (Replaces: 8523045) |
|
$ 269.30 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 8 | W11728329 | Pan, Radiant (Replaces: W10106409) |
|
Immediately | $ 122.99 |
