01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

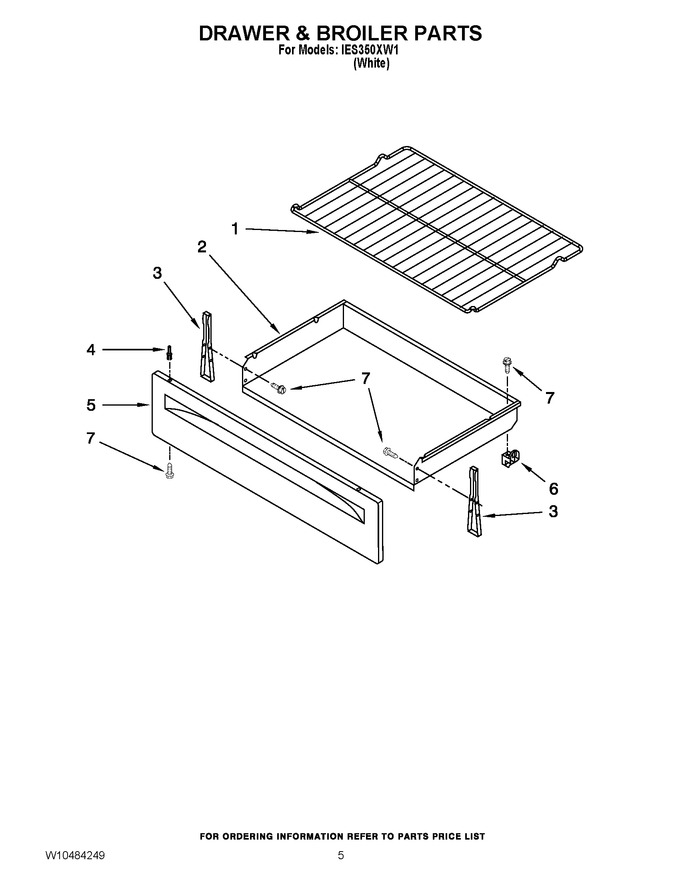

04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: W10268578) |
|
Immediately | $ 42.16 | ||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10300032) |
|
Immediately | $ 124.34 | ||||
| 3 | WPW10462912 | Bracket, Drawer(2) (Replaces: W10462912) |
|
Immediately | $ 114.65 | ||||
| 4 | WP3196814 | Rivet, Push (2) (Replaces: 3196814) |
|
Immediately | $ 9.49 | ||||
| 5 | W11219377 | Panel, Drawer Frnt (Replaces: 8053339) |
|
$ 182.21 | |||||
| 6 | W10763667 | Glide, Drawer (2) (Replaces: W10317899) |
|
Immediately | $ 96.91 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 |
