01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:

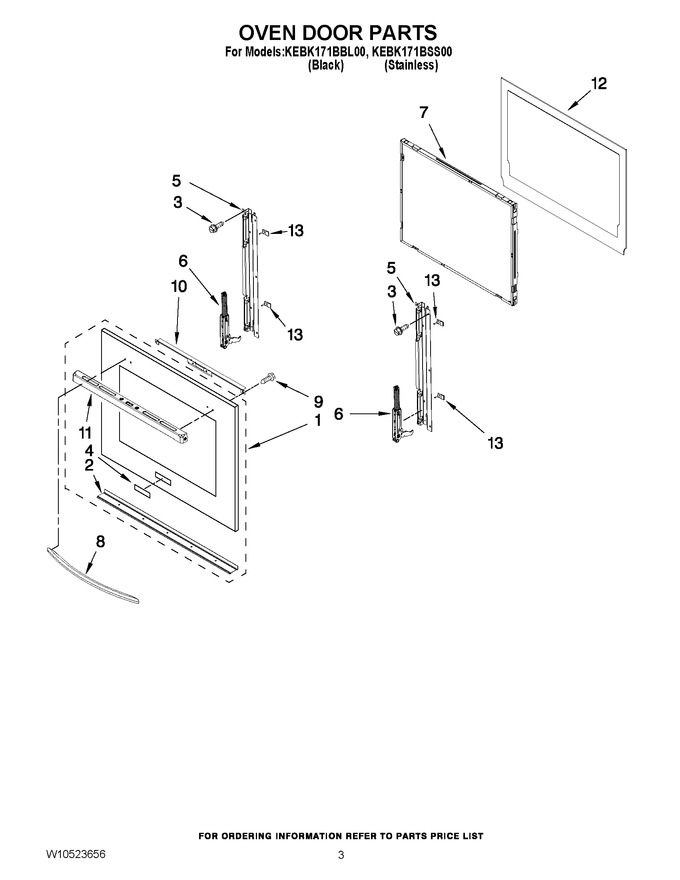

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10364931 | Assembly, Window Pack (stainless) |
|
- | |||||
| 1 | W10364932 | Assembly, Window Pack (black) |
|
- | |||||
| 2 | W10502554 | Bracket, Lower Door |
|
- | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 6.47 | ||||
| 4 | WPW10243392 | Badge (black) (Replaces: W10243392) |
|
$ 63.17 | |||||
| 4 | WPW10243391 | Badge (stainless) (Replaces: W10243391) |
|
$ 49.98 | |||||
| 5 | WPW10581826 | Bracket, Door Side (right) (Replaces: W10284283) |
|
$ 57.11 | |||||
| 5 | W10284284 | Bracket, Door Side (left) |
|
- | |||||
| 6 | W11642291 | Hinge, Door (Replaces: W10419878) |
|
$ 71.35 | |||||
| 7 | W10347599 | Assembly, Inner Glass |
|
$ 212.42 | |||||
| 8 | WPW10437675 | Door Handle (stainless) (Replaces: W10437675) |
|
$ 173.66 | |||||
| 8 | W10284919 | Door Handle (black) |
|
- | |||||
| 9 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.16 | ||||
| 10 | W10502538 | Bracket, Upper, Glass |
|
- | |||||
| 11 | W10416258 | Vent, Door Top |
|
- | |||||
| 12 | WPW10335921 | Liner, Door (Replaces: W10335921) |
|
$ 354.53 | |||||
| 13 | WPW10323551 | Bumper, Rail (Replaces: W10323551) |
|
$ 7.21 |
