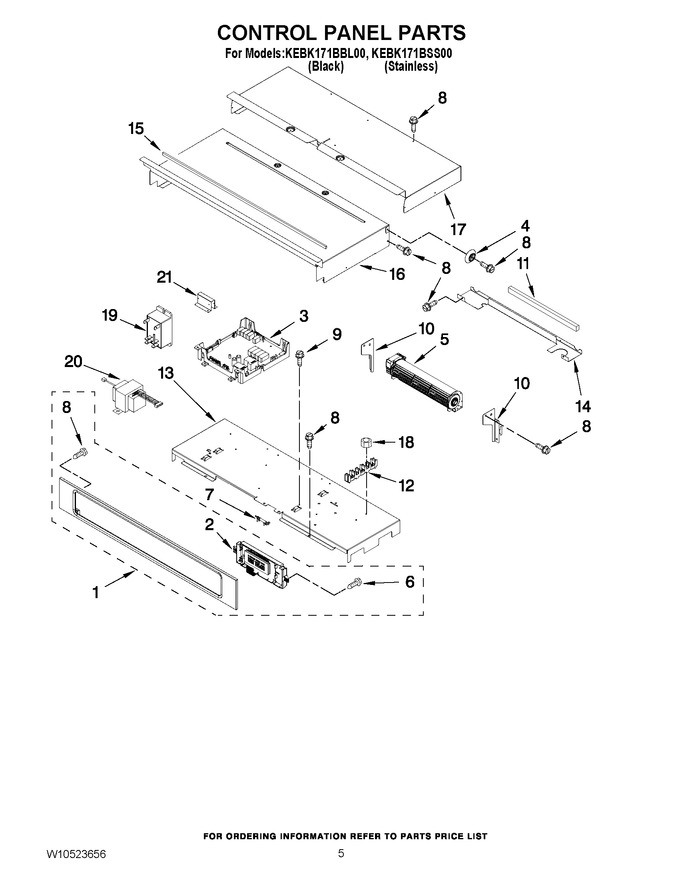

SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10570054		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10365992)				$ 795.20
1	W10365991		Assembly, Control Panel (includes Overlay) (stainless)		Appelez-nous	-
2	WPW10751146		Board, Display   (Replaces: W10317347)			Immediately	$ 263.37
3	W10317343		Board, Goc				$ 372.16
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	WPW10260254		Blower   (Replaces: W10260254)			Immediately	$ 160.23
6	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
7	WPW10545255		Fuse, Thermal   (Replaces: W10436434)			Immediately	$ 25.12
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 31.65
13	W10283005		Tray, Electronic		Appelez-nous	-
14	W10509164		Chassis, Divider Back   (Replaces: W10504027)		Appelez-nous	-
15	WPW10657548		Gasket, Rubber   (Replaces: W10351292)				$ 76.85
16	W10318193		Chassis, Cover Top Front 27``				$ 116.64
17	W10318195		Chassis, Cover Top Back 27``				$ 95.18
18	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)			Immediately	$ 6.47
19	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 172.43
20	W10354052		Transformer, Control				$ 122.98
21	W10347585		Bracket, Relay				$ 14.27

    View Diagram in Separate Window       Print Part List
