Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242038301		Gasket-drawer				$ 244.81
11	241965801		Drawer-top		Appelez-nous	-
12	241873301		Nameplate, Electrolux, Stainless				$ 11.15
14	241967001		Plug-button, Black		Appelez-nous	-
15	241966801		Drawer-bottom				$ 697.94
18	241881306		Handle, Door, Stainless				$ 163.11
21	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 12.05
23	241897404		Board-control, Temp Control				$ 383.99
26	215503206		Screw-#10-16 Hilo Phil Pan Hd		Appelez-nous	-
28	241966502		Cover-top Drawer		Appelez-nous	-
30	241981201		Front, Top Drawer, W/ui Harness				$ 948.68
31	241981202		Front-drawer, Bottom Drawer		Appelez-nous	-
32	241959303		Cover-bottom Drawer		Appelez-nous	-
45	240383407		Screw, Truss Hd Quad, #10-16 X .500, White				$ 12.76
51	241959501		Rail-shelf, Full Access, Left		Appelez-nous	-
52	241959502		Rail-shelf, Full Access		Appelez-nous	-
53	241965701		Lid-condiment Tray		Appelez-nous	-
54	241964401		Plate-condiment Tray				$ 48.11
55	241965601		Tray-condiment		Appelez-nous	-
56	241965501		Tray-condiment, Complete Assemb		Appelez-nous	-
21C	241918201		Screw, #8-32 X 3/8, Flat Head				$ 9.98
21D	241951701		Screw, Truss Head, 1/4-20		Appelez-nous	-
NI	218515401		Clip-grille				$ 17.72
NIDA	241947201		Washer-flat, .250 X 1.50 Od, Zinc		Appelez-nous	-

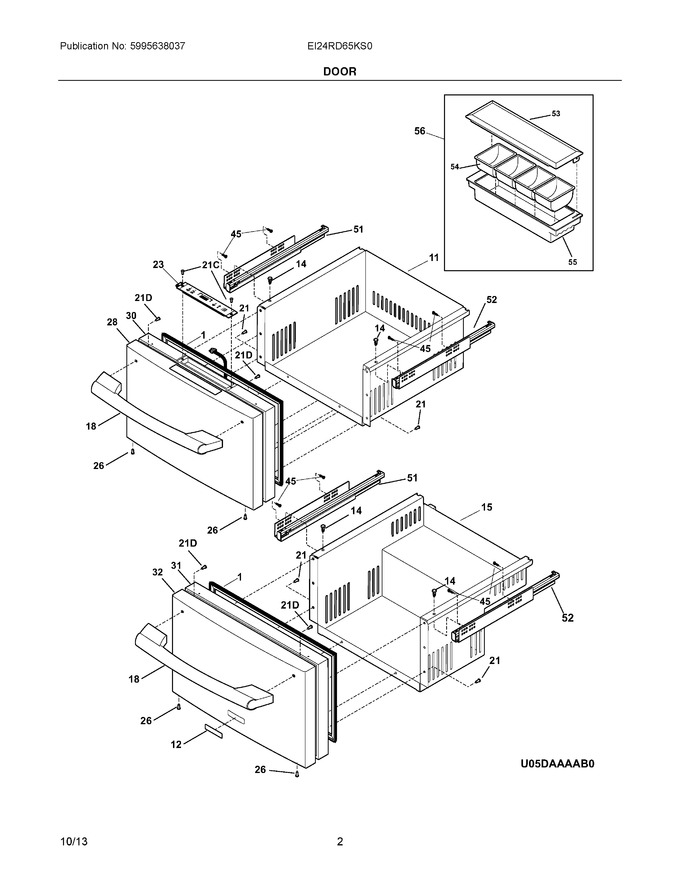

    View Diagram in Separate Window       Print Part List
