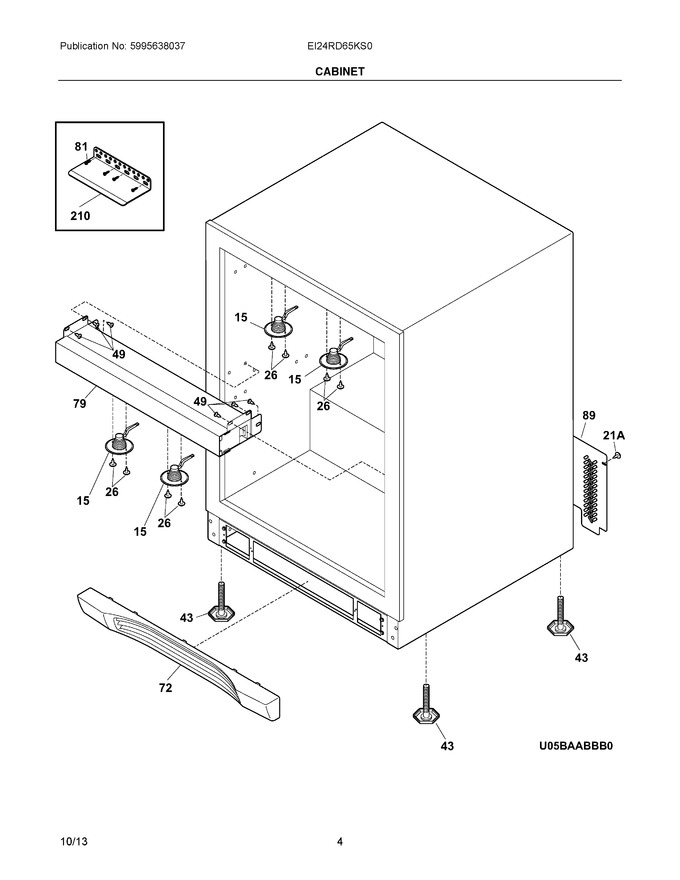

03 - Cabinet
04 - System
05 - Wiring Schematic
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | 5304520842 | Light Assembly, Led, (4) (Replaces: 241904201) |
|
$ 215.46 | |||||
| 26 | 241904301 | Screw, Led Lighting |
|
- | |||||
| 43 | 241911501 | Leveling Leg, Screw |
|
$ 4.06 | |||||
| 49 | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 12.05 | |||||
| 72 | 241969803 | Grille/kickplate |
|
$ 197.35 | |||||
| 79 | 241960402 | Mullion, Black |
|
$ 237.49 | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 89 | 241898002 | Cover-access |
|
- | |||||
| 210 | 241903801 | Bracket-anti Tip |
|
$ 61.20 | |||||
| 21A | 241906101 | Screw-#10 X 3/4 Tek |
|
- | |||||
| NI | 241900701 | Harness-intermediate, Uc, Led Lighting |
|
$ 24.22 |
