01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

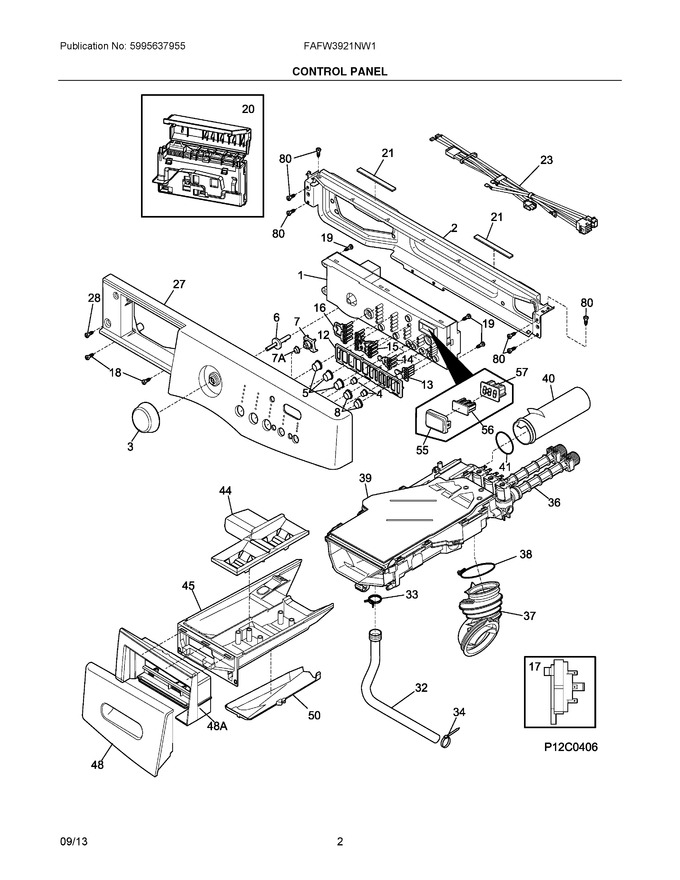

1	137035251		Control Board, Pc, With Housing				$ 311.85
2	134887400		Bracket, Control Panel, Mounting				$ 92.61
3	137314625		Knob, Control				$ 53.19
4	134618213		Control Board, Motor   (Replaces: 134618211)				$ 310.14
5	137314725		Push Button, Round #3, 12				$ 29.66
6	134347700		Pin, Program Knob				$ 19.74
7	134885100		Push Button, Round, #2		Appelez-nous	-
8	137320825		Push Button, Round #1, 7				$ 29.51
11	137314825		Push Button, Round #4				$ 35.12
12	137320500		Spring, Push Buttons				$ 30.29
13	134557500		Light Pipe, Start Group				$ 5.67
14	134557400		Light Pipe, Row Of 3				$ 6.67
15	134552800		Light Pipe, 5 X 4				$ 18.43
16	134600000		Light Pipe, Row Of 5				$ 18.43
17	134762010		Switch, Pressure				$ 42.64
20	809055306		Control Board, Pc, With Housing   (Replaces: 134957912)				$ 290.59
21	134407900		Dampener, Vibration				$ 17.01
22	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
23	137248000		Harness, Wiring				$ 254.00
27	137500710		Panel, Control Console				$ 135.77
28	131205300		Screw, 10-16 X 0.750			Immediately	$ 12.10
32	134586500		Hose, Disp-to-bellows				$ 52.24
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
36	134959330		Valve, Dispenser, Non Ntc			Immediately	$ 137.01
37	134372300		Hose, Disp-to-tub				$ 58.32
38	134372400		Clamp, Tub Hose				$ 64.49
39	134446130		Housing, Dispenser, Valve, Cover				$ 215.20
40	134372100		Tube, Disp-to-overflo				$ 50.87
41	134372200		O-ring, Overflow Tube				$ 13.74
44	134370200		Cover, Dispenser			Immediately	$ 41.11
45	134370000		Drawer, Dispenser			Immediately	$ 74.11
48	137516110		Handle, Drawer				$ 51.93
50	134409320		Conveyor, Dispenser, Lower   (Replaces: 134370100)			Immediately	$ 366.58
55	137320700		Window, Digit Display				$ 32.03
56	134557300		Light Pipe, Digital Display				$ 19.06
57	134503300		Display, Digital				$ 52.24
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
3B	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
48A	137314510		Frame, Drawer Handle			Immediately	$ 86.08
7A	137360300		Cap, Button, Delay Start				$ 35.07
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 51.04
NIA	134178901		Screw, 8-18ab X 0.455				$ 14.89

    View Diagram in Separate Window       Print Part List
